Modern Residential Apartment CAD Layout with Detailed Floor Plans

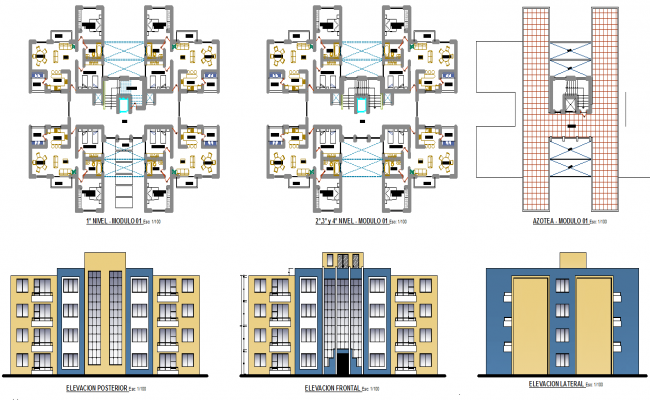

This modern residential apartment CAD design showcases a comprehensive AutoCAD DWG layout featuring floor plans, sectional elevations, and site-level planning. The drawing includes multiple apartment units, corridors, service areas, and balcony arrangements designed for functional and aesthetic balance. Each floor plan is drafted with exact dimensions and structural annotations for construction accuracy. The apartment layout also highlights core architectural components like staircases, elevators, and parking spaces, ensuring practical flow within the building structure.

This architectural CAD drawing is perfect for architects, civil engineers, and real estate developers working on residential building projects. The DWG file supports visualization and construction planning in software like AutoCAD, Revit, and SketchUp, allowing seamless modification and presentation. The modern apartment floor plan combines space optimization with modern design standards, providing a professional base for urban housing, real estate modeling, and apartment complex planning. It is ideal for creating visually appealing and efficient residential architecture.
