Steel frame construction outer panel with plate details


Description

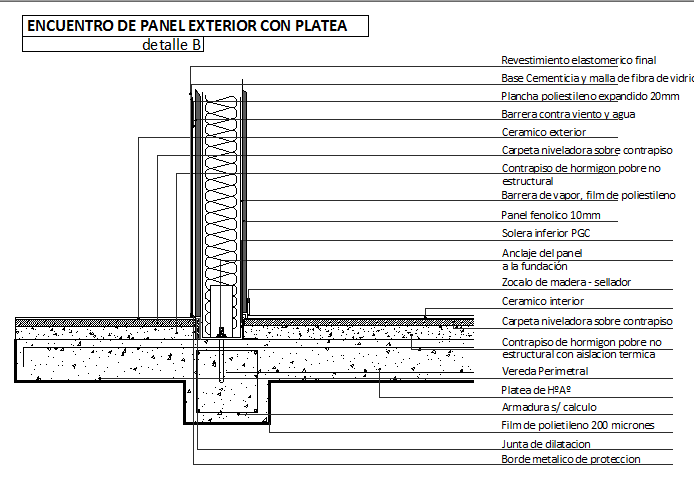

Steel frame construction outer panel with plate details . Steel frame construction outer panel with plate that includes a detailed view of Final elastomeric coating, Cementicia base and fiberglass mesh, Expanded polystyrene sheet 20mm, Barrier against wind and water, Ceramic exterior, Bulldozer folder on sub floor, Non-structural poor concrete sub floor, Vapor barrier, polystyrene film, 10mm phenolic panel and much more of steel frame details.



Vaishali
India
File Type: DWG ID: 33999
