Two Story Residential Plan with Complete Architectural Layouts

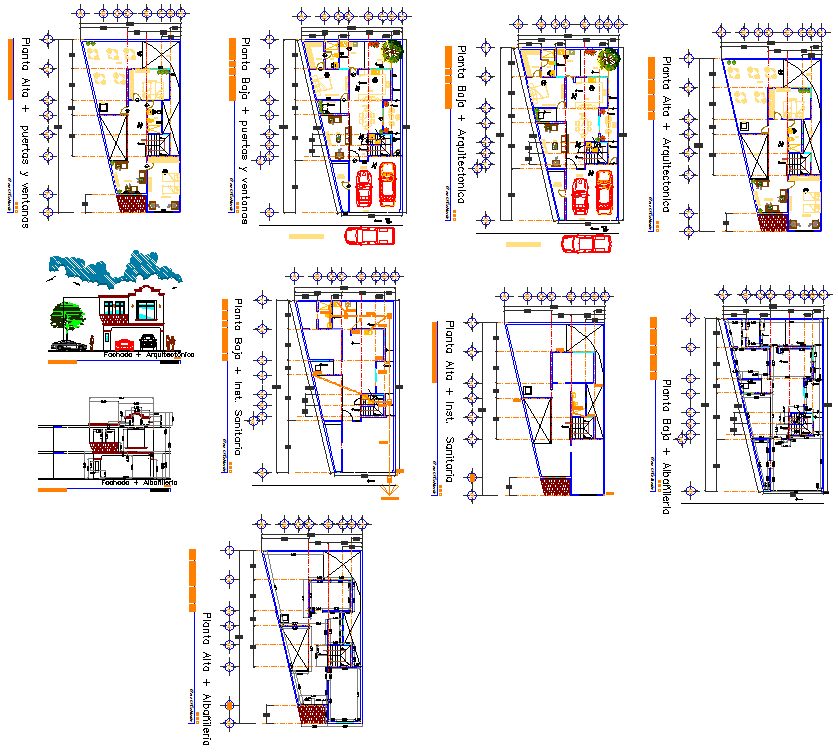

This two story residential plan provides a complete architectural layout of both the ground floor and upper floor, offering a clear visual structure for efficient space planning. The ground floor includes living areas, kitchen zones, dining space, service rooms, bathrooms, and parking for two vehicles, all arranged within a geometrically angled plot. The drawing also shows door and window placements, stair positions, interior partitions, and the functional distribution of social and private spaces. Elevation views illustrate façade elements, window modules, roof design, and external architectural features, providing additional clarity for construction execution.

The upper floor plan highlights bedroom layouts, balcony access, circulation paths, and sanitary installations, accompanied by detailed plumbing and electrical overlays for accurate implementation. The sectional drawings depict vertical relationships between floors, structural beam placements, floor heights, and support elements. A full set of architectural, sanitary, and electrical plans ensures a coordinated design suitable for architects, engineers, and builders planning a compact yet functional two level home. This comprehensive plan assists professionals in analyzing spatial efficiency, service routing, and construction sequencing, making it ideal for residential development on irregular plots.
