Zone Control Valve Assembly DWG File for Precise HVAC Layout

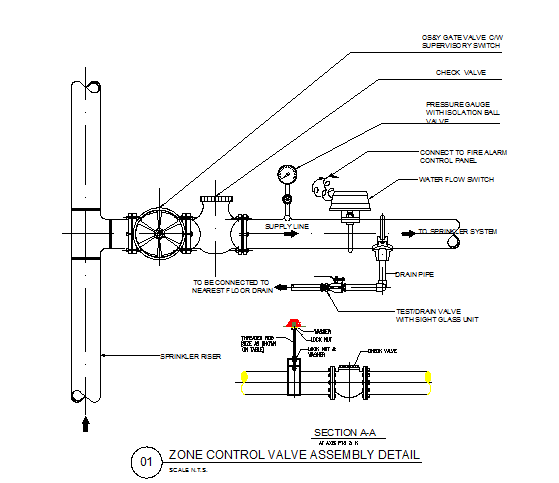

Zone control valve assembly details dwg file Zone control valve assembly details that includes a detailed view of gate valve supervisory switch, check valve, pressure gauge with isolation ball valve, connection to fire alarm control panel, water flow switch, drain pipe, test drain valve, sprinkler riser and much more of valve details.
