Modular Kitchen Detail AutoCAD DWG with Floor Plan and Elevation

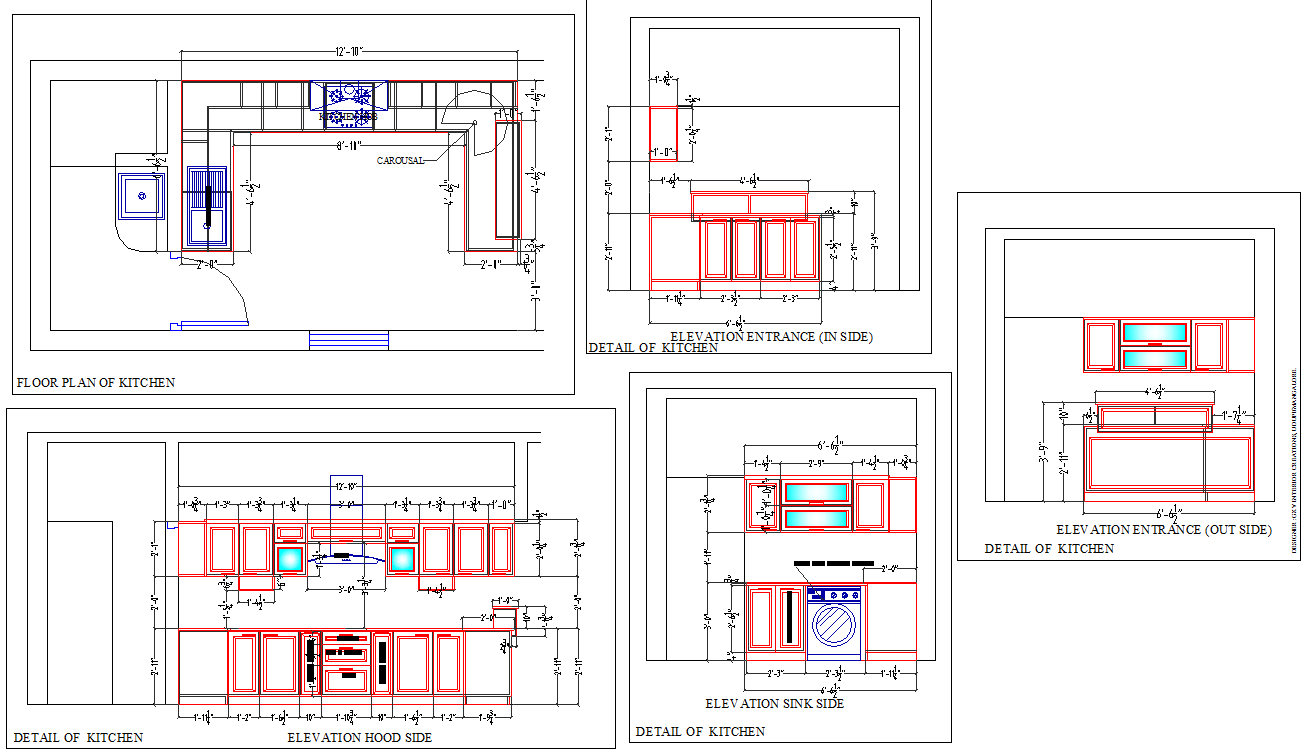

This Kitchen Detail AutoCAD DWG drawing presents a complete modular kitchen layout with precise measurements and elevation views. The file includes a floor plan of 12’-10” x 8’-11”, showing counter placement, sink location, and carousel corner design. Detailed elevation drawings display the hood side, sink side, and entrance views (inside and outside), highlighting upper and lower cabinet arrangements, countertop levels, and storage modules. Each unit’s dimension and spacing are accurately marked to ensure practical implementation during design or renovation.

The DWG file is ideal for architects, interior designers, and builders working on modern kitchen spaces. It offers essential technical details like cabinet height, worktop depth, and wall unit alignment for professional documentation and on-site reference. This layout supports an ergonomic workflow between the sink, stove, and refrigerator, achieving an efficient work triangle design. Perfect for learning or professional use, this kitchen drawing ensures clarity in interior planning, furniture fitting, and modular space design execution.
