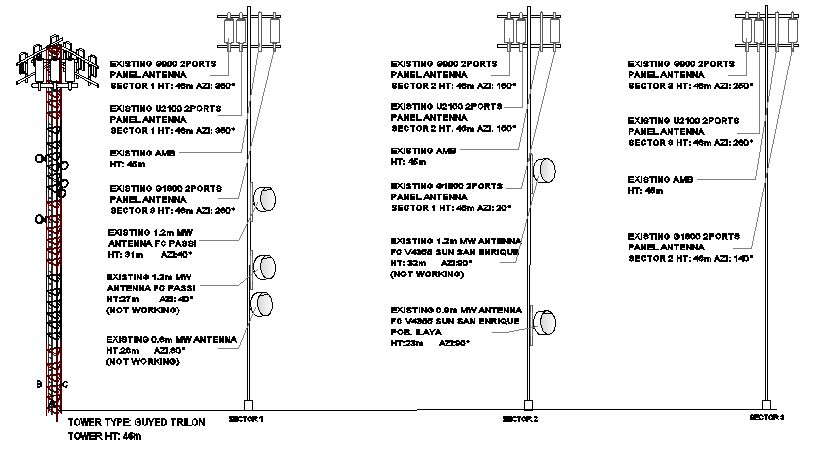

Three legged tower installation details with leg details dwg file


Description

Three legged tower installation details with leg details dwg file. Three legged tower installation details with leg details that includes a detailed view of existing port panel antenna, existing two ports panel antenna, cable details, cable, genset, fuel tank, measures voltage, power one, vacant, spare, label, exhausted fan, light, incoming power phase, conduct and much more of tower details.




File Type: DWG File ID: 39293

Uploaded by:


Vaishali
India
