Three legged SST tower electric installation details dwg file

Description:

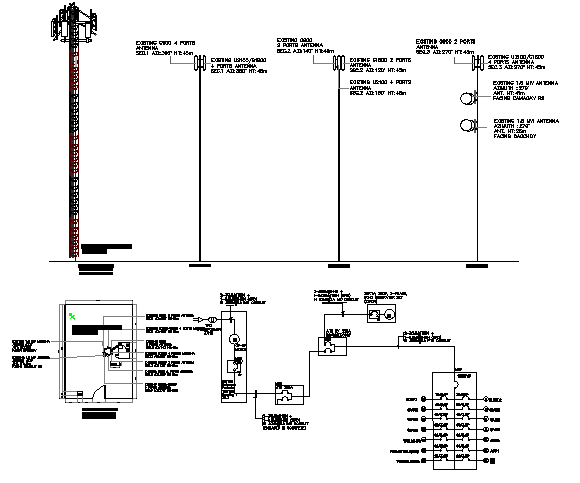

Three legged SST tower electric installation details dwg file. Three legged SST tower electric installation details that includes a detailed view of existing port panel antenna, existing two ports panel antenna, cable details, cable, genset, fuel tank, measures voltage, power one, vacant, spare, label, exhausted fan, light, incoming power phase, conduct and much more of tower details.



Category : Electrical Cad
Sub category : Architecture
File Type : Autocad
File ID : 39298
Type : Gold
Size : 283.22 KB
Publisher
Vaishali
