Modern House Design DWG with 12m Layout and 3 Floor Plan Details

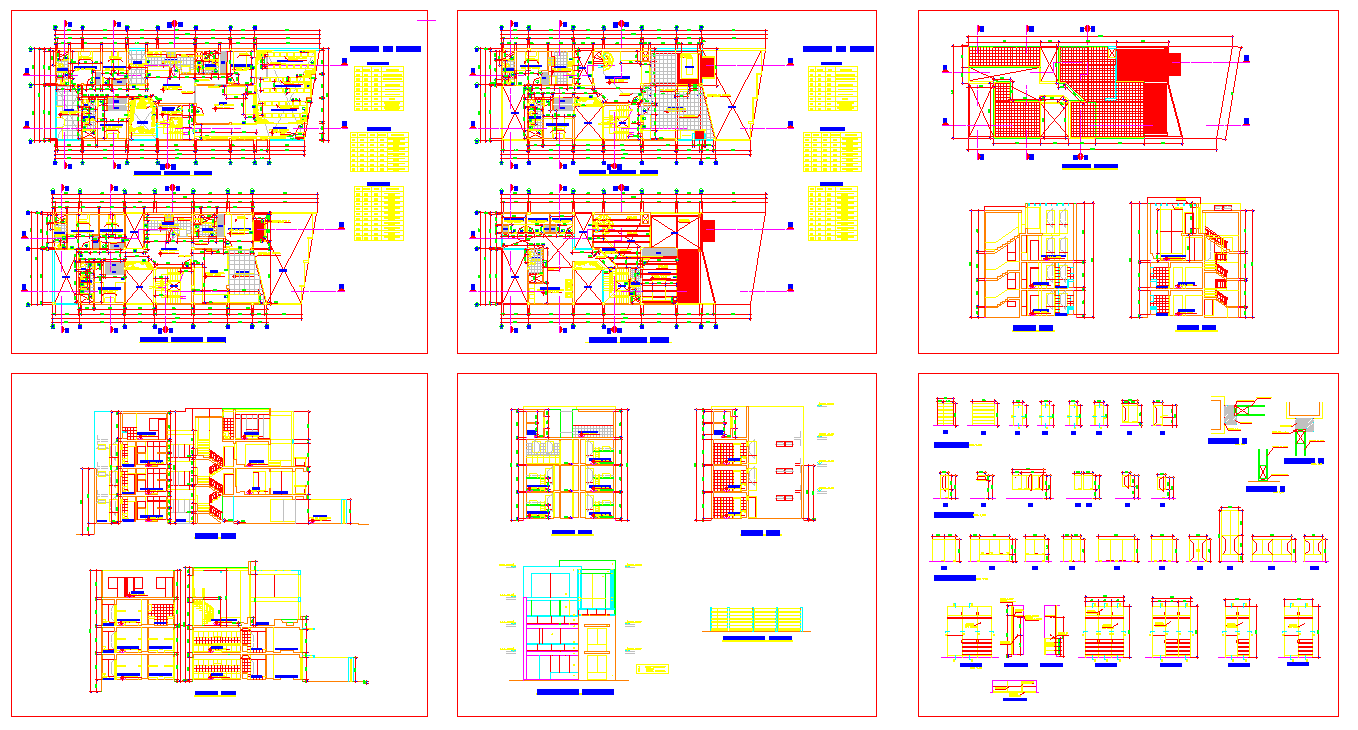

This modern house design DWG file features a complete architectural layout with a 12m structural grid and detailed planning across the ground floor, first floor, and second floor. The drawing includes the living room, dining area, kitchen layout, bedroom arrangements, and sanitary spaces with accurate measurements. Each level is drafted with precise dimensioning, column placement, beam positions, and door–window schedules, ensuring clarity for both architects and civil engineers. The plan also includes electrical layouts, plumbing routing, and load-bearing wall distribution for efficient execution during construction.

The file further features high-quality presentation plans, working drawings, and detailed sectional views illustrating staircases, slab heights, floor finishes, and construction joints. Elevations highlight the modern façade elements such as glazing, balcony projections, parapet height, compound wall details, and exterior treatments. Structural sheets include reinforcement details, footing plans, RCC beam–column connections, and roofing design. This DWG is ideal for designers, builders, and AutoCAD users seeking a complete, ready-to-use modern house project with full architectural and structural clarity.
