Building Architecture Detail with Wall Roof Window Section 1.20m Sheet

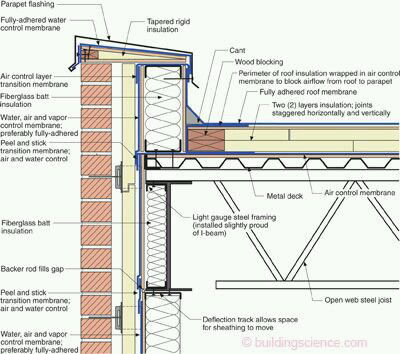

This AutoCAD DWG file provides an in depth building architecture detail displayed on an estimated 1.20m sheet, illustrating vertical and horizontal section views, roof to wall junctions, insulation layers, and complete façade detailing. The drawing includes a parapet flashing layout, tapered rigid insulation, metal deck positioning, light gauge steel framing, and slab edge connection points. Each construction layer such as fiberglass batt insulation, air control membrane, backer rod placement, and peel and stick protection membrane is clearly represented for precise architectural communication. The uploaded detail also shows window surround treatment, drainage plane continuity, vapor protection strategy, and structural load transfer through open web steel joists.

The DWG further highlights how exterior sheathing integrates with air barrier systems, along with the thermal bridging reduction at parapet and slab intersections. The section views illustrate cant placement, wood blocking, membrane wrapping details, and fastening points for exterior finishes. These drawings support accurate construction understanding for architects, civil engineers, interior designers, builders, and drafting professionals. The file is ideal for technical referencing, design modification, or training use in AutoCAD, Revit, 3D Max, and SketchUp workflows, ensuring dimensional clarity and professional quality for building envelope detailing.
