Download the detailed AutoCAD DWG layout of a community and institutional building, including architectural plans, structural details, and design measurements.

This AutoCAD DWG file presents a comprehensive architectural layout for a community and institutional complex developed for public use. The plan includes a main hall, library, dining area, offices, consultation rooms, circulation zones, and restrooms, along with service spaces such as kitchen, storage, and utility areas.

The total site area measures 3,550.00 m², with a built-up area of 2,187.00 m² and a permeable area of 580.73 m². The project also includes ramps, corridors, covered patios, and open courtyards, ensuring accessibility and efficient circulation.

Designed in 1:100 scale, this drawing provides exact spatial divisions, room functions, and measurements — perfect for architects, engineers, and builders designing community infrastructure projects.

This DWG file is ideal for professionals seeking inspiration or reference for public building layouts or institutional design development in AutoCAD.

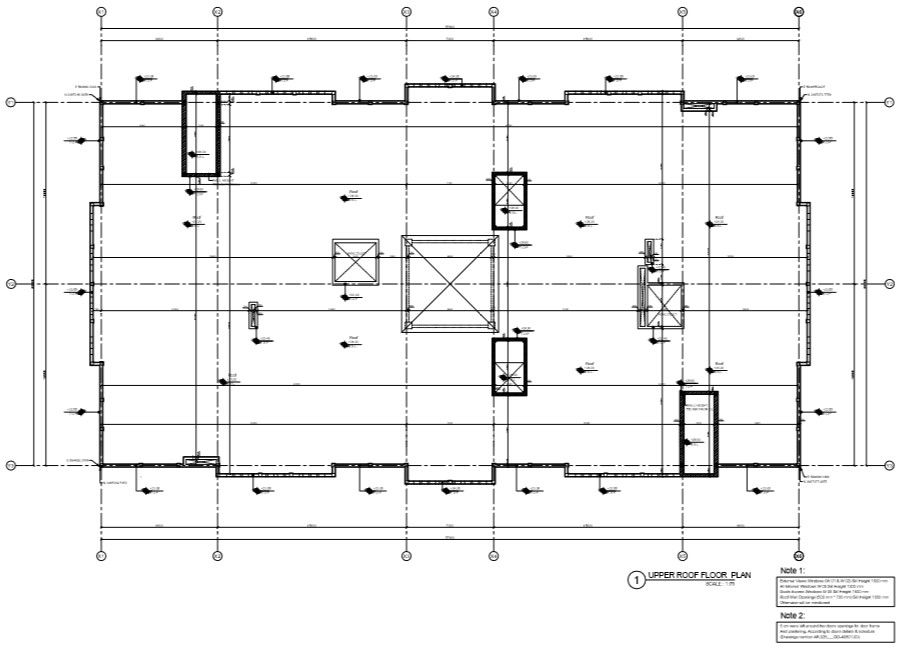

building upper floor plan
