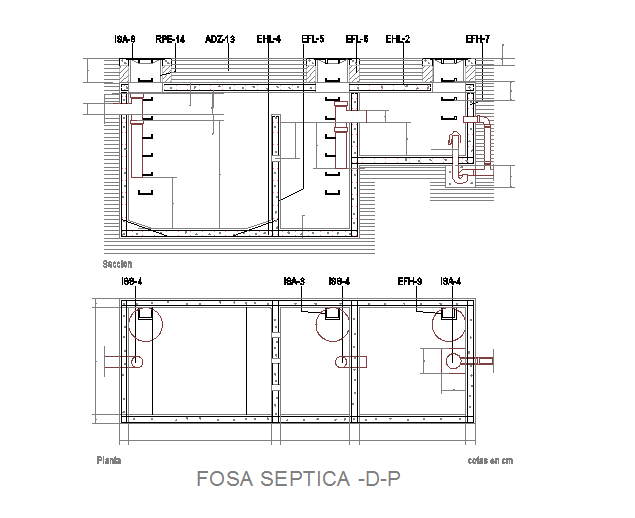

Septic Tank CAD Drawing with Plan Layout and Section Details

This AutoCAD DWG file presents a detailed septic tank CAD drawing developed for wastewater collection and treatment system planning. The drawing includes a complete septic tank plan layout with internal chamber configuration, inlet and outlet pipe arrangement, partition wall details, ventilation provisions, and structural construction information. Section details provide a clear understanding of tank depth, wall thickness, base slab arrangement, cover slab construction, and flow movement within the system. The septic tank drawing is suitable for architects, civil engineers, builders, and design professionals working on residential, commercial, and infrastructure projects requiring reliable sanitation solutions.
