Hospital Detail DWG with Architectural Floor Plan Elevation Section

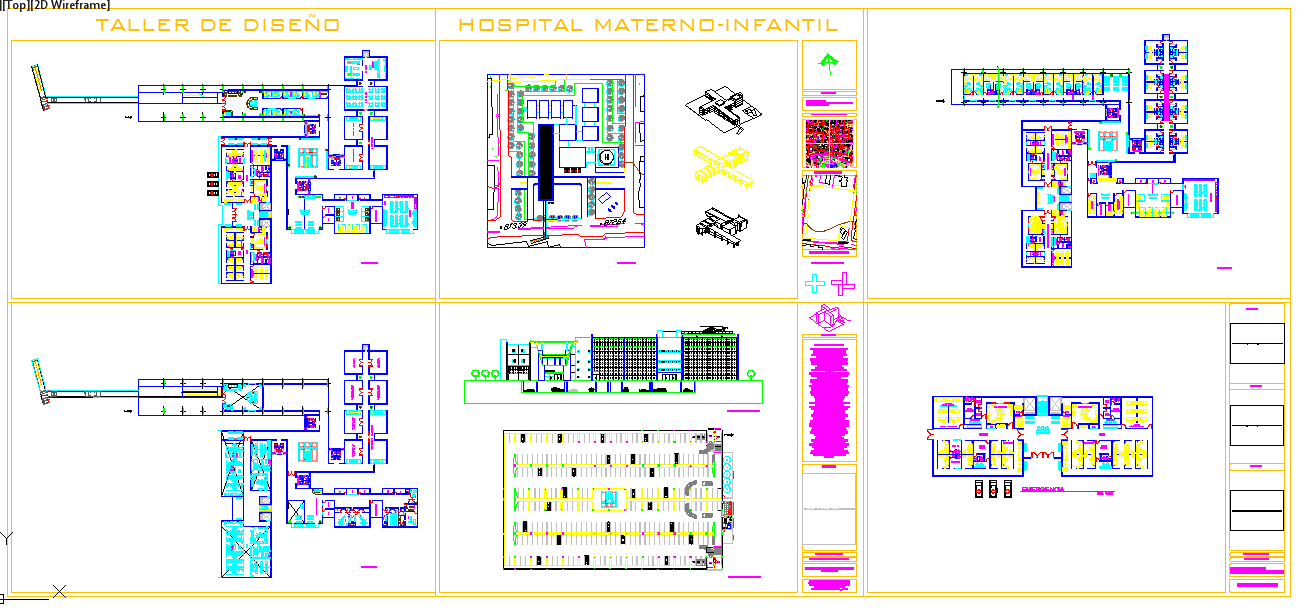

This AutoCAD DWG file showcases a complete hospital detail design, including presentation plans, working drawings, and elevation layouts. The project provides an in-depth view of architectural and engineering details such as electrical systems, drainage layouts, and structural elements, ensuring accurate and efficient planning of healthcare facilities. Each drawing has been carefully organized to support proper zoning for wards, consultation rooms, operating theaters, waiting areas, and service spaces.

The file also includes sectional views and elevation drawings that demonstrate vertical circulation, building proportions, and façade detailing. The design integrates both functionality and aesthetics to create a safe and efficient hospital environment. This DWG file serves as an essential reference for architects, engineers, and medical facility planners working on healthcare infrastructure. It combines practical space planning, service detailing, and architectural accuracy to meet the needs of modern hospital projects while ensuring safety, hygiene, and operational efficiency.
