Residential Collapsible Door AutoCAD Detail with Plan and Elevation

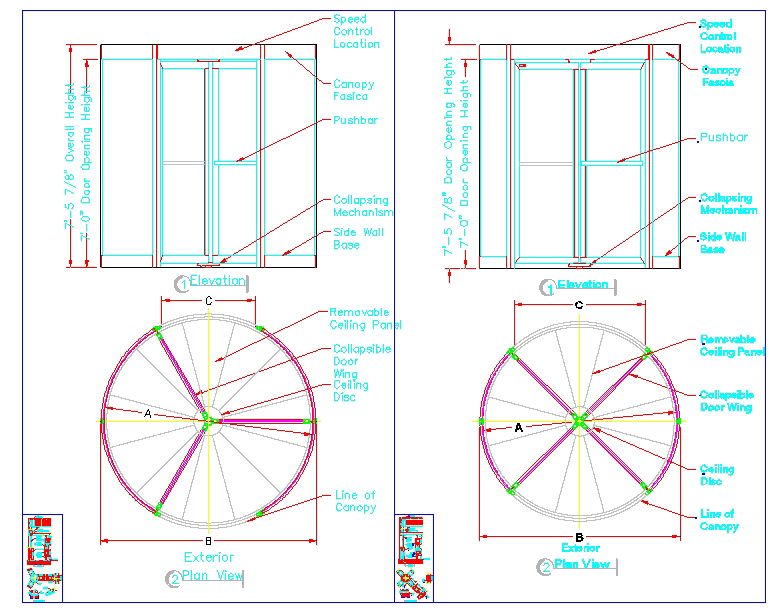

This residential collapsible door AutoCAD drawing provides a complete 2D detail with both plan and elevation views. The design includes components like canopy fascia, pushbar, side wall base, ceiling disc, and removable ceiling panels. The plan view illustrates the circular arrangement of the collapsible wings, while the elevation details show precise measurements such as a door opening height of 7'-0" and an overall height of 7'-5 7/8".

This DWG file is ideal for architects, interior designers, and builders designing modern homes, offices, or commercial entryways. The detailed annotations cover structural elements like the collapsing mechanism, ceiling support, and canopy structure to assist in accurate implementation.

The AutoCAD drawing ensures precision in joinery, movement clearance, and canopy alignment, making it suitable for use in residential, institutional, or hospitality projects. Professionals using AutoCAD, Revit, or SketchUp can utilize this DWG for technical documentation and construction detailing. Download this detailed, collapsible door CAD file to improve design presentation and technical accuracy in your next project.
