Modern Hospital Design DWG Layout Plan with Detailed Architecture

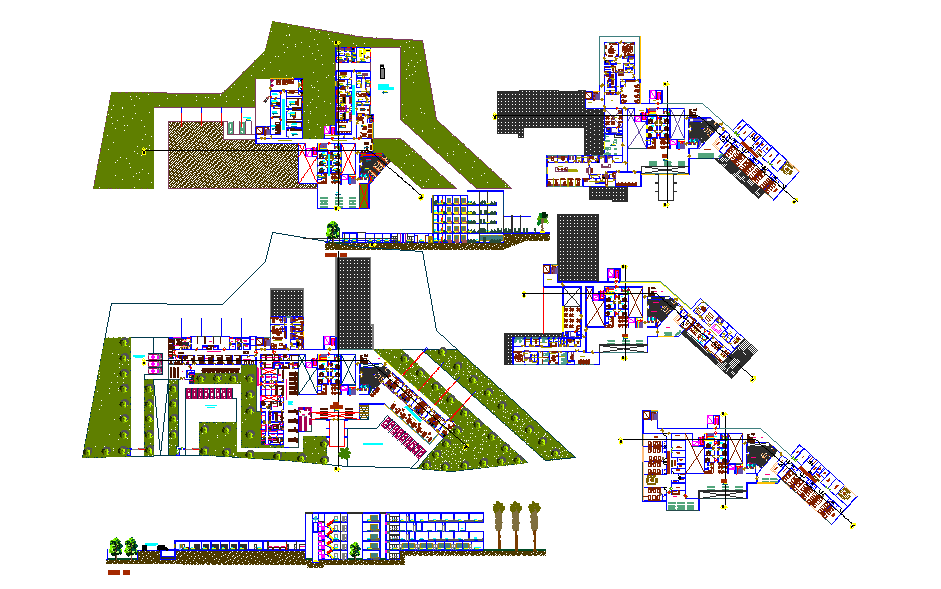

This hospital design DWG project presents a comprehensive architectural layout created for healthcare facilities using AutoCAD. The plan includes essential areas such as waiting zones, general and special patient wards, operation theatres, doctors’ cabins, administrative offices, auditoriums, and canteens. Additionally, the design provides detailed parking space allocation and landscaping for efficient site circulation. Each section of the layout ensures a smooth flow between patient care areas and medical services while maintaining safety and hygiene standards.

Developed with precision for professional use, this AutoCAD hospital layout is ideal for architects, civil engineers, and healthcare project planners. The DWG file highlights multi-level sections, interior layouts, and outdoor landscaping to support modern hospital infrastructure design. Its detailed structure reflects practical zoning principles, ensuring functionality and comfort for patients and staff. Whether for new hospital construction or renovation, this DWG hospital project helps visualize efficient healthcare architecture that blends innovation, accessibility, and sustainability.
