Medical Facility Expansion Plans with Full Room Measurements

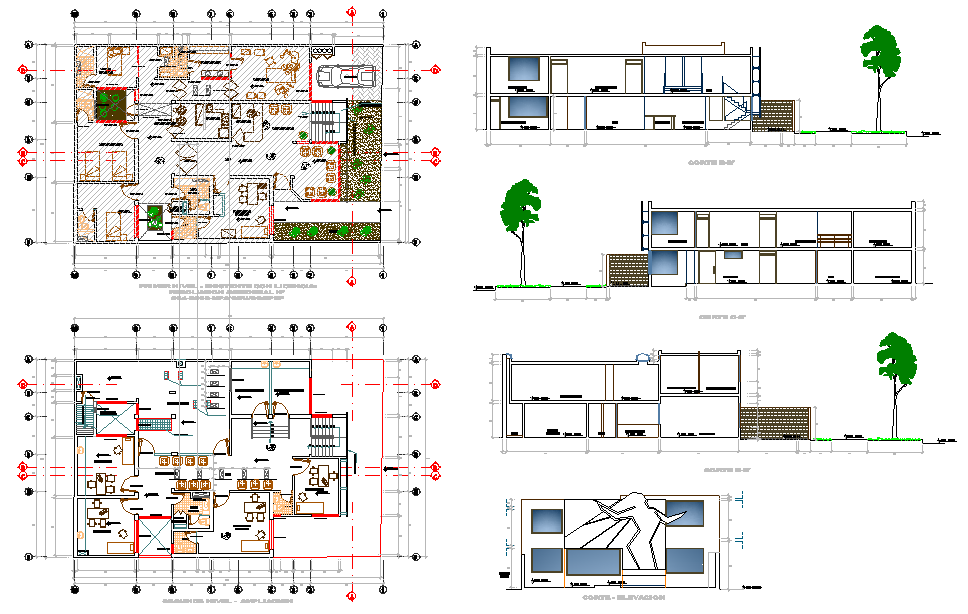

This medical facility expansion plan provides a complete architectural layout of the first and second levels with precise room measurements and clear circulation paths. The ground level includes areas such as Consultorio Principal, Sala de Curacion, Recepcion, Hall, SSHH Publico, Cocinilla, Sala de Espera, and Quirofano, each marked with detailed dimensions such as two point forty meters, three point fifty five meters, and seven point fifty one meters, ensuring accurate space planning. NPT levels, including plus zero point forty five, plus zero point thirty, and zero point fifteen, show floor height transitions for structural clarity. Additional zones, such as Cuarto Limpio and Post Operatorio, are also represented with defined spatial distribution.

The second level presents additional Consultorios, Sala de Rayos Laser, Sala de Ultrasonido, an Administracion area, and a fully mapped hall with exact measurements like four point sixty five meters, two point sixty seven meters, and two point forty meters. Stair dimensions, including steps of zero point fifteen meters and counter steps of zero point twenty five meters, help professionals understand movement design. This expansion plan provides architects, civil engineers, interior designers, and builders with accurate room sizing, elevation markings, and spatial layout essential for professional project development.
