Hospital project detail plan with complete layout and elevation DWG

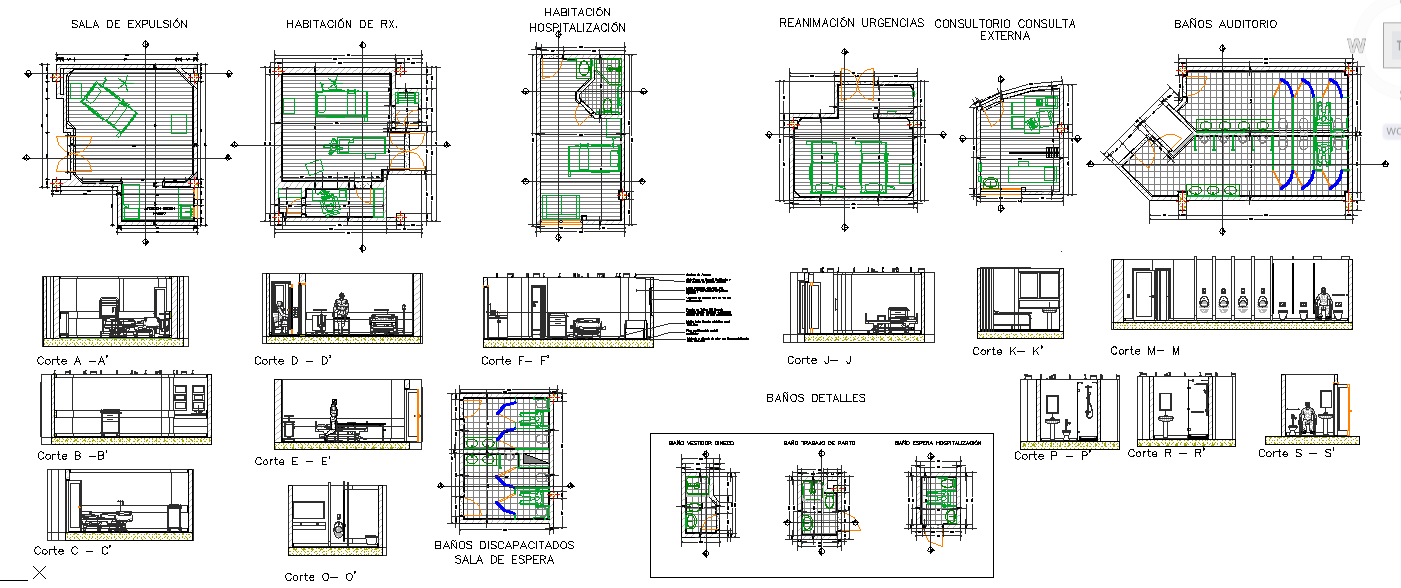

This AutoCAD DWG file provides a complete hospital project detail plan, showcasing an organized arrangement of medical departments, service corridors, patient rooms, consultation areas, and staff zones. The drawing includes detailed layouts of entry points, reception area placement, circulation paths, and internal zoning that ensures efficient hospital functioning. Each room and corridor is marked with accurate proportions, helping architects and engineers understand the design hierarchy and space distribution. The DWG also includes clear elevation views that highlight façade treatment, height alignment, window placement, and structural divisions essential for healthcare buildings. With a clean drafting style, this plan supports proper planning, service routing, and functional design development.

The drawing further presents detailed hospital components such as emergency access routes, waiting areas, utility connections, staircase positioning, and supporting service blocks. These elements help designers create a hospital environment that meets standard architectural requirements and patient movement flow. Suitable for architects, civil engineers, hospital planners, and interior designers, this DWG serves as a ready reference for developing small to medium-scale medical projects. Its layout supports effective planning of structural, interior, and external design components required in a modern healthcare facility.
