Model Type DWG Detail for Ceiling Luminaire with Dimensions and Labels

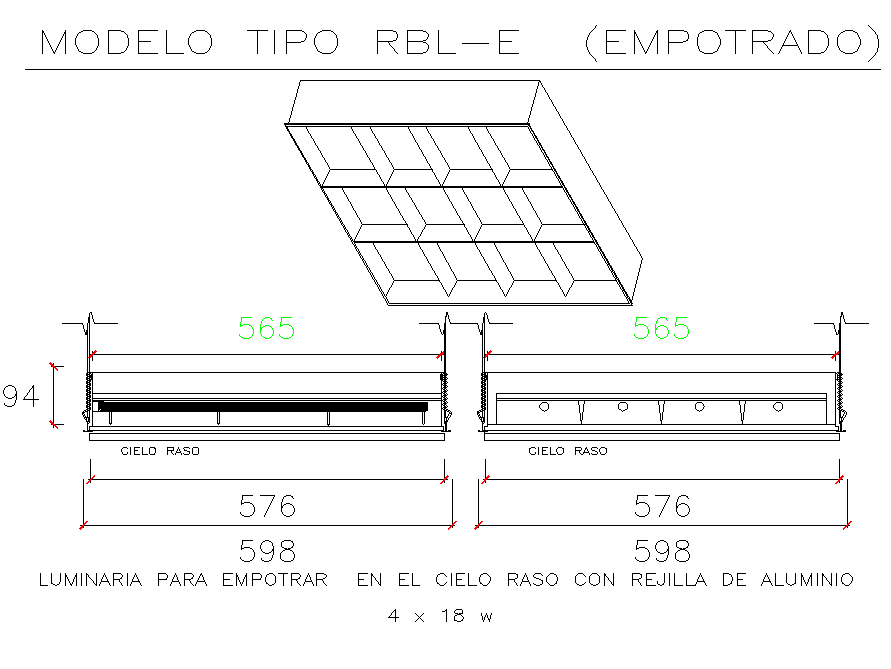

This Model Type Detail DWG file provides a complete technical drawing for ceiling-mounted luminaires. The drawing includes top, side, and sectional views, with precise measurements for width, height, and spacing between luminaire grids. All components are clearly labeled, including aluminum grilles, light fixtures, and mounting details, ensuring accurate installation in residential, commercial, or office spaces. The plan shows the layout for 4 × 18 W lamps with exact spacing and ceiling recess dimensions, making it easier for architects, interior designers, and electrical engineers to coordinate installation with other building services.
