Door and Window Elevation Section Drawing with Frame and Size Detail

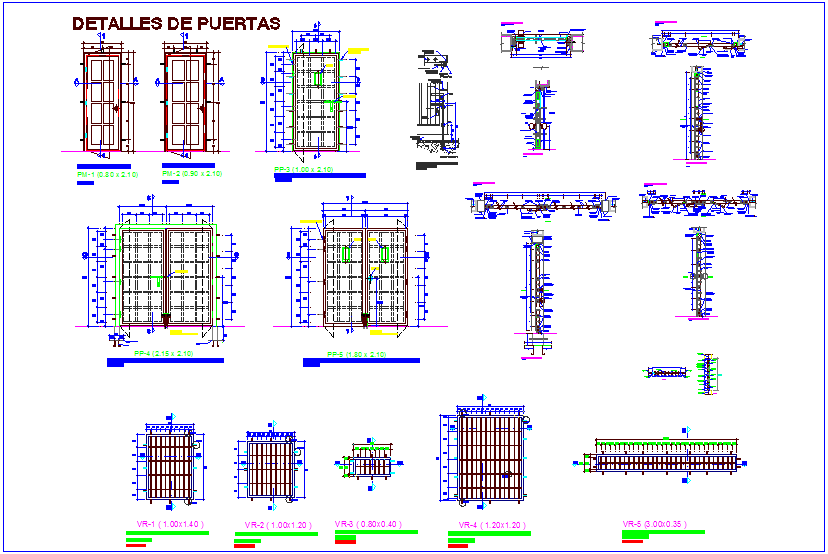

This door and window elevation section drawing with frame and size detail is prepared in AutoCAD format for residential and commercial building projects. The drawing presents detailed elevations of single and double doors along with window openings, showing frame construction, shutter patterns, grill designs, and opening directions. It includes sectional views displaying wall thickness, lintel level, sill height, fixing methods, and joint connections. Standard measurements such as 0.80x2.10 m, 1.00x2.10 m, 1.20x2.10 m, and ventilation sizes are clearly marked to support accurate fabrication and installation. Exterior and interior views are also illustrated for a better understanding of finishing and alignment. It assists architects, civil engineers, interior designers, and builders in preparing construction drawings, door and window schedules, and material estimations.
