Urban Centre Landscape Plan with Circular Pathways and Seating Zones

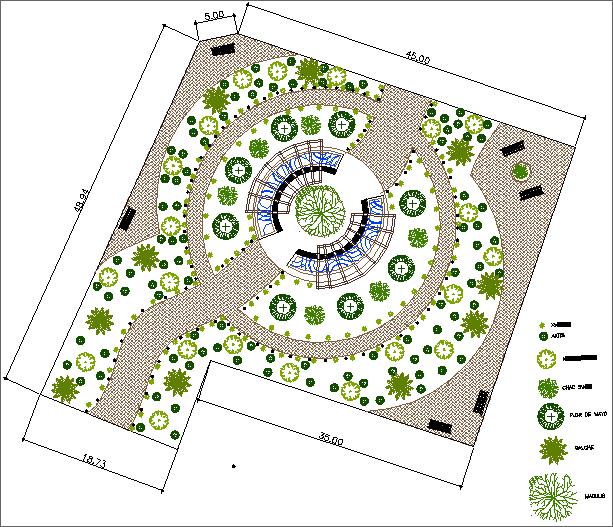

This architectural layout presents an urban centre landscape plan designed around a circular core, featuring structured pedestrian pathways, layered planting zones, and seating arrangements. The drawing shows a central circular plaza with fixed seating arranged in a semicircular pattern around a planted tree island. Surrounding this core is an outer ring of shrubs, ornamental plants, and tree clusters laid out symmetrically. Paved walkways connect the inner circle to the larger circulation loops, providing smooth pedestrian movement. The plan highlights multiple dimensions, including 46.00 m, 36.50 m, 18.73 m, and 49.04 m, showing the overall site proportions and walkway alignments. Landscape symbols represent a diverse mix of vegetation types, arranged to create visual balance and continuous greenery across the layout.

The surrounding areas include open spaces, curved paths, benches, shaded seating corners, and distributed plant beds. Additional outer landscaping is structured along the site edges, forming a natural buffer around the central gathering zone. Walkways and green pockets are placed harmoniously to encourage community interaction and outdoor recreation. The design also includes directional pathways that guide visitors through garden sections and resting points. The combination of central seating, circular landscaping, outer green layers, and accessible paths provides a complete visual representation of an urban garden or community centre outdoor layout.
