Portable Fire Extinguisher Mounting Detail With Pipe Section View

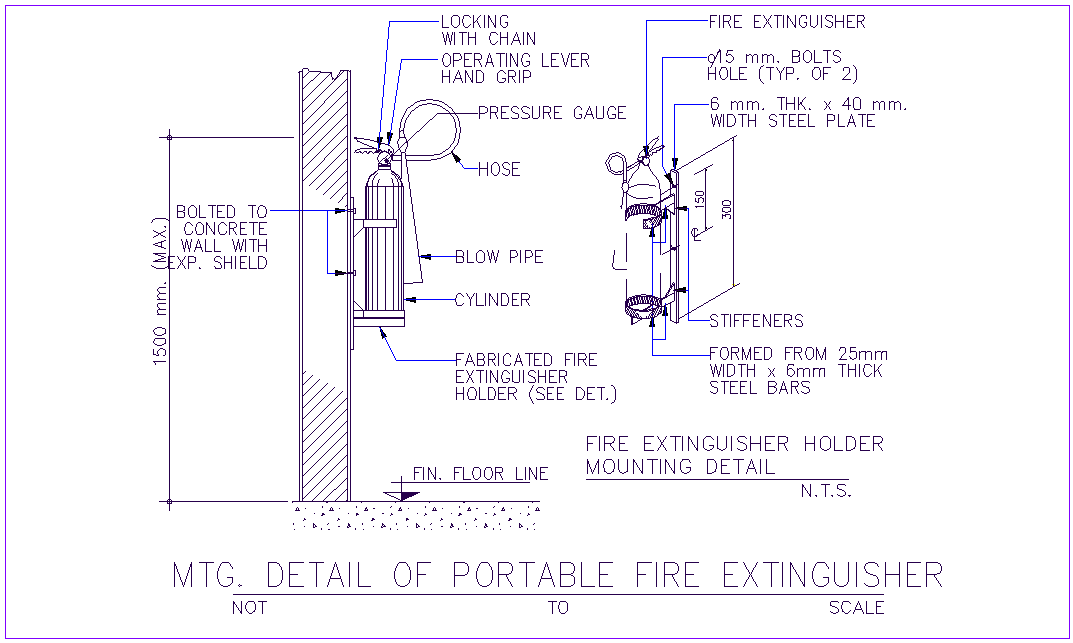

This portable fire extinguisher mounting detail drawing shows a complete section view with pipe section and wall fixing arrangement. The drawing includes an extinguisher cylinder, a pressure gauge, a hose, a blow pipe, and an operating lever hand grip with a locking chain system. It clearly illustrates a bolted connection to a concrete wall using a nut and shield with an accurate height reference of 1500 mm from the finished floor level. The layout also presents mounting bracket and holder fabrication, ensuring proper positioning and safety compliance for fire protection systems. Section and isometric representation of the cylinder provide a clear understanding of installation and structural support.
