Public Sanitary Detail AutoCAD DWG Plan with Plumbing Layout

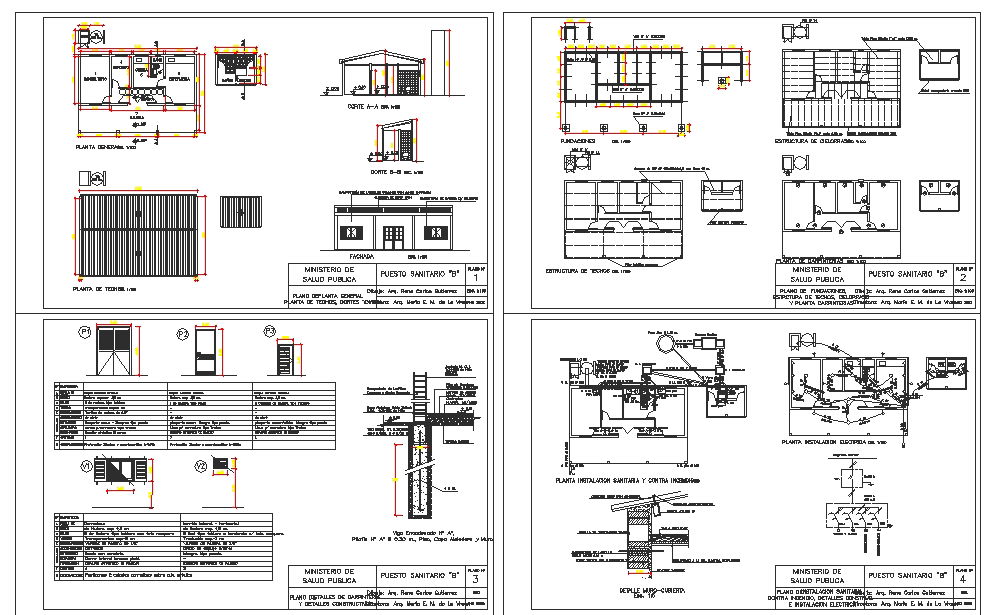

Public sanitary detail AutoCAD DWG file presenting a complete sanitary plumbing layout for a public toilet unit under Ministerio de Salud Publica Puesto Sanitario project reference. The drawing set includes dimensioned floor plans, front elevation, sectional views, door and window details, and structural framing layout. The sanitary plan indicates WC cubicles, urinal partitions, wash basins, ventilation openings, and circulation areas with precise measurements and grid references. Door sizes, wall thicknesses, foundation sections, and roof structure details are clearly marked to support accurate site execution. This sanitary detail DWG also illustrates plumbing routing, drainage slope direction, pipe connections, trap locations, and manhole positioning for proper wastewater management.
