Bar Restaurant Project AutoCAD DWG with Seating Layout and Dimensions

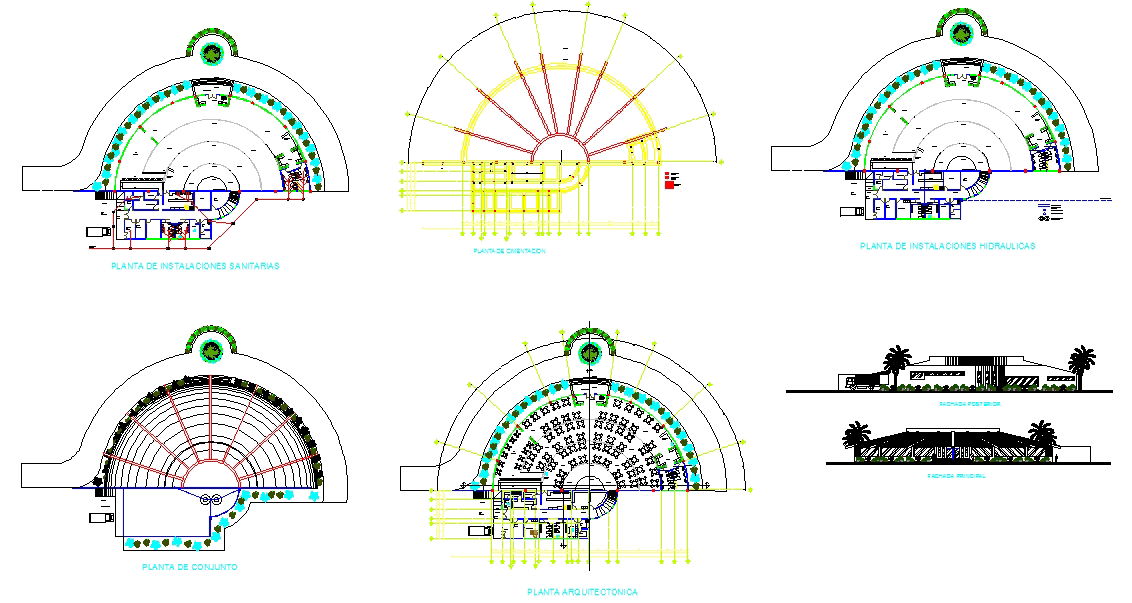

This Bar Restaurant Project AutoCAD DWG file provides a professionally drafted layout with complete planning of dining, bar, and service areas. The drawing includes a bar counter with a standard height of approximately 1100 mm, a counter depth of nearly 600 mm, and back storage shelving units. Dining table arrangements are planned with a spacing of about 900 mm to 1000 mm, while circulation aisles maintain widths of nearly 1200 mm for smooth customer movement. The plan also shows kitchen workstations measuring around 2.5 m x 3.0 m, preparation counters, washing zones, cold storage space, and service corridors. Reception desk placement, waiting lounge, and washroom blocks of approximately 1.5 m x 2.2 m are clearly marked. Accurate dimensions, wall thickness, ventilation shafts, and electrical points support precise execution.
