Clinic Plan and Elevation AutoCAD DWG with Site Layout and Dimensions

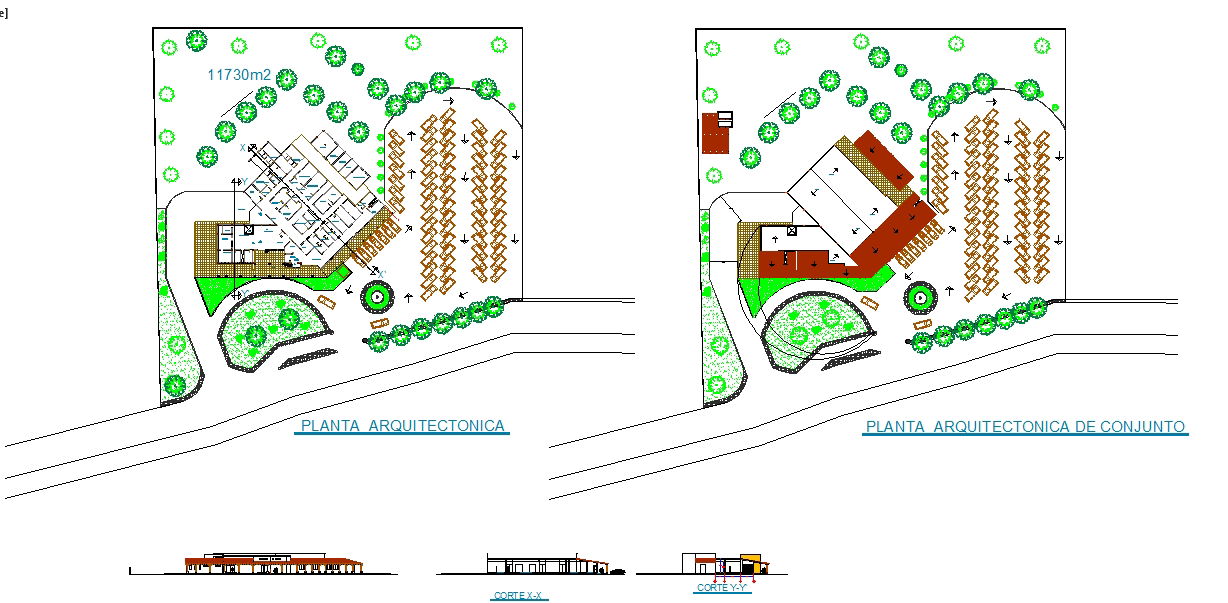

This Clinic Plan and Elevation AutoCAD DWG file presents a professionally detailed healthcare facility design with complete site planning, architectural layouts, and vertical development views. The drawing includes an architectural site area of approximately 11730 square meters, internal circulation roads, landscaped green zones, parking rows, and pedestrian pathways. It features OPD consultation rooms measuring around 3.0 m x 3.5 m, treatment areas, nurse stations, pharmacy counters, and administrative offices. The layout also shows entrance plazas, drop-off zones, and service access routes. Front and side elevations with accurate floor heights of nearly 3.3 m, roof profiles, façade treatments, and window alignments are clearly illustrated. Structural grids, wall thickness, and setback lines support precise construction planning.
