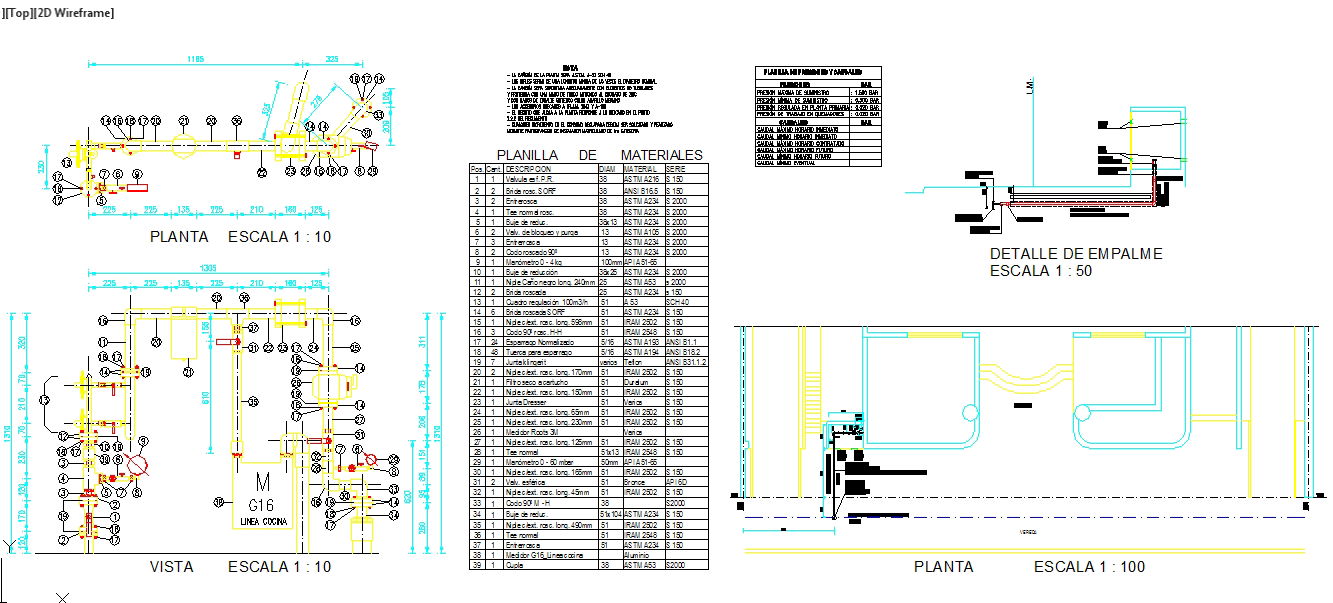

Regulator Plant Detail AutoCAD DWG with Section and Dimensions

This Regulator Plant Detail AutoCAD DWG file provides a professionally drafted industrial infrastructure layout with complete plan, sectional views, and structural detailing. The drawing includes regulator chamber dimensions of approximately 4.0 m x 6.0 m, reinforced concrete wall thickness of nearly 300 mm, foundation depth of about 1.5 m, and pipeline inlet and outlet alignments. It also shows valve positioning, control platforms, inspection ladders, and maintenance access zones. Clear sectional cuts illustrate internal flow channels, slab levels, base plate supports, and structural reinforcement details. Accurate dimensions, center lines, and elevation markers ensure precision in construction and installation.
