Clinic Plan Detailed Drawing with Floor Layout Sections and Elevation

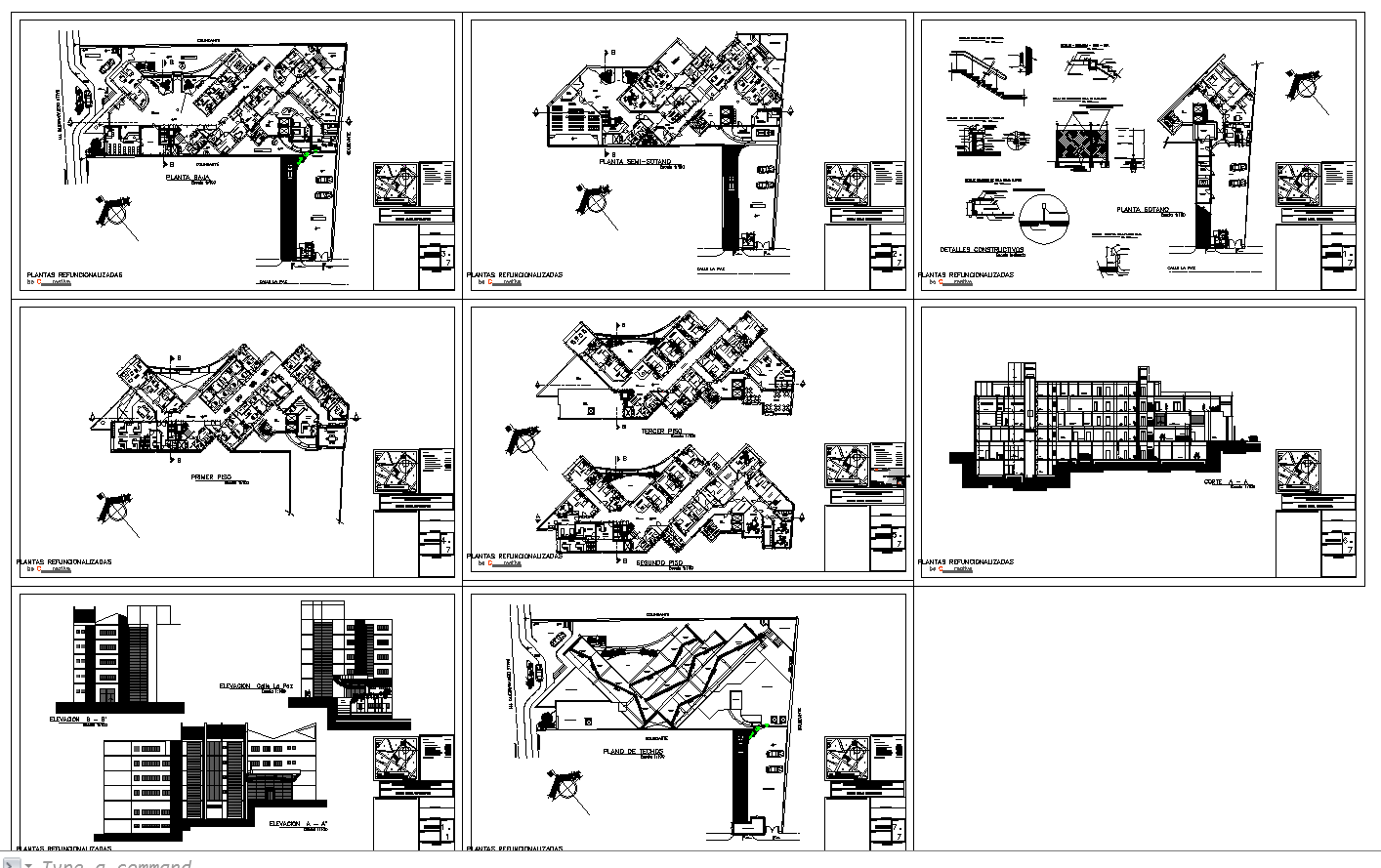

This Clinic Plan Detail Drawing is a professionally prepared AutoCAD DWG file designed for traditional and modern healthcare facilities, including Ayurvedic and Unani medical clinics. The drawing includes detailed floor plans with consultation rooms, treatment chambers, medicine storage, therapy rooms, waiting areas, reception desk, doctor cabins, staff rooms, toilets, and utility spaces. The layout represents an approximate built-up area of 1200 to 2200 square meters, with room sizes ranging from 9 square meters to 28 square meters. Structural grids, wall thicknesses, door window schedules, and circulation routes are clearly marked with accurate measurements in meters and millimeters. Elevations, sectional views, and façade details are also included for construction reference.
