Multi Specialist Hospital Project Drawing with Floor Plans Sections

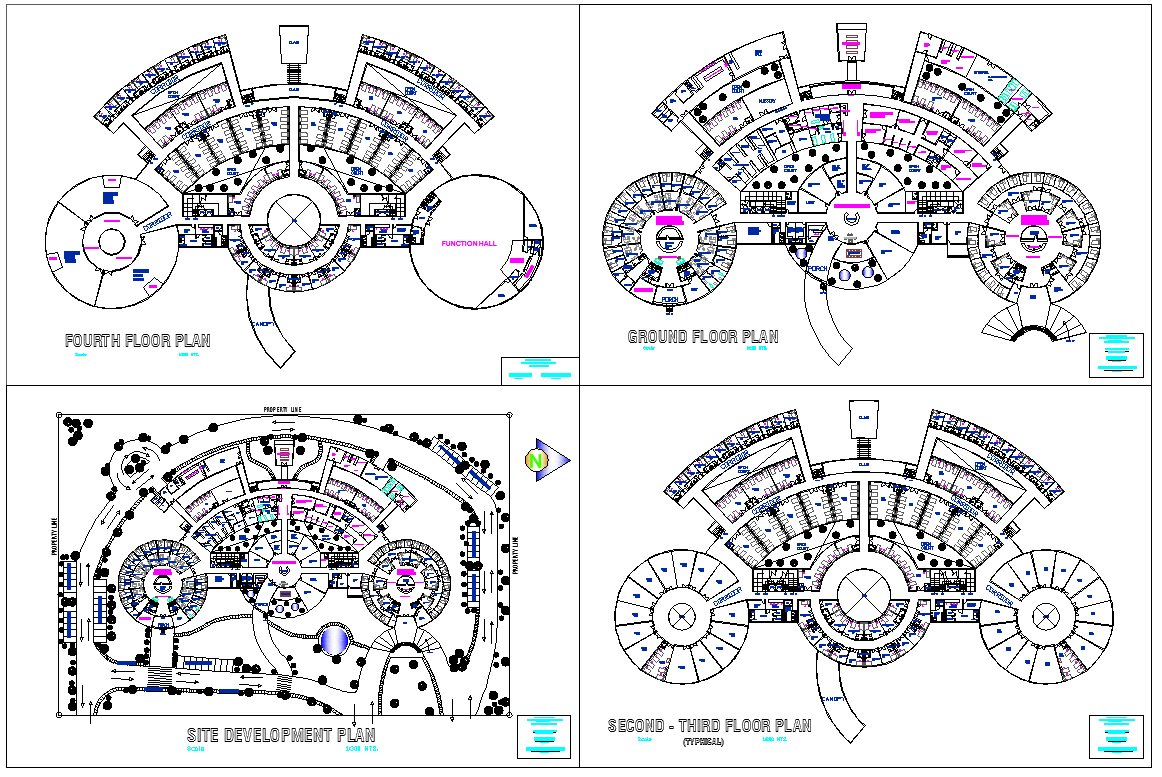

This Multi-Specialist Hospital Project Drawing is a professionally designed AutoCAD DWG file developed for large-scale healthcare infrastructure planning. The drawing includes detailed ground floor, second floor, third floor, and fourth floor layouts with outpatient departments, inpatient wards, ICU units, operation theatres, diagnostic labs, emergency block, pharmacy, reception, waiting lounges, and administrative offices. A dedicated function hall, central circulation core, staircases, lifts, and service corridors are clearly marked. The project covers an approximate built-up area of 9500 to 12500 square meters, with room sizes ranging from 14 square meters to 55 square meters. All layouts are dimensioned in meters and millimeters, ensuring precise construction coordination.
