Hospital Materno Infantil 1 100 Scale Architectural DWG Layout

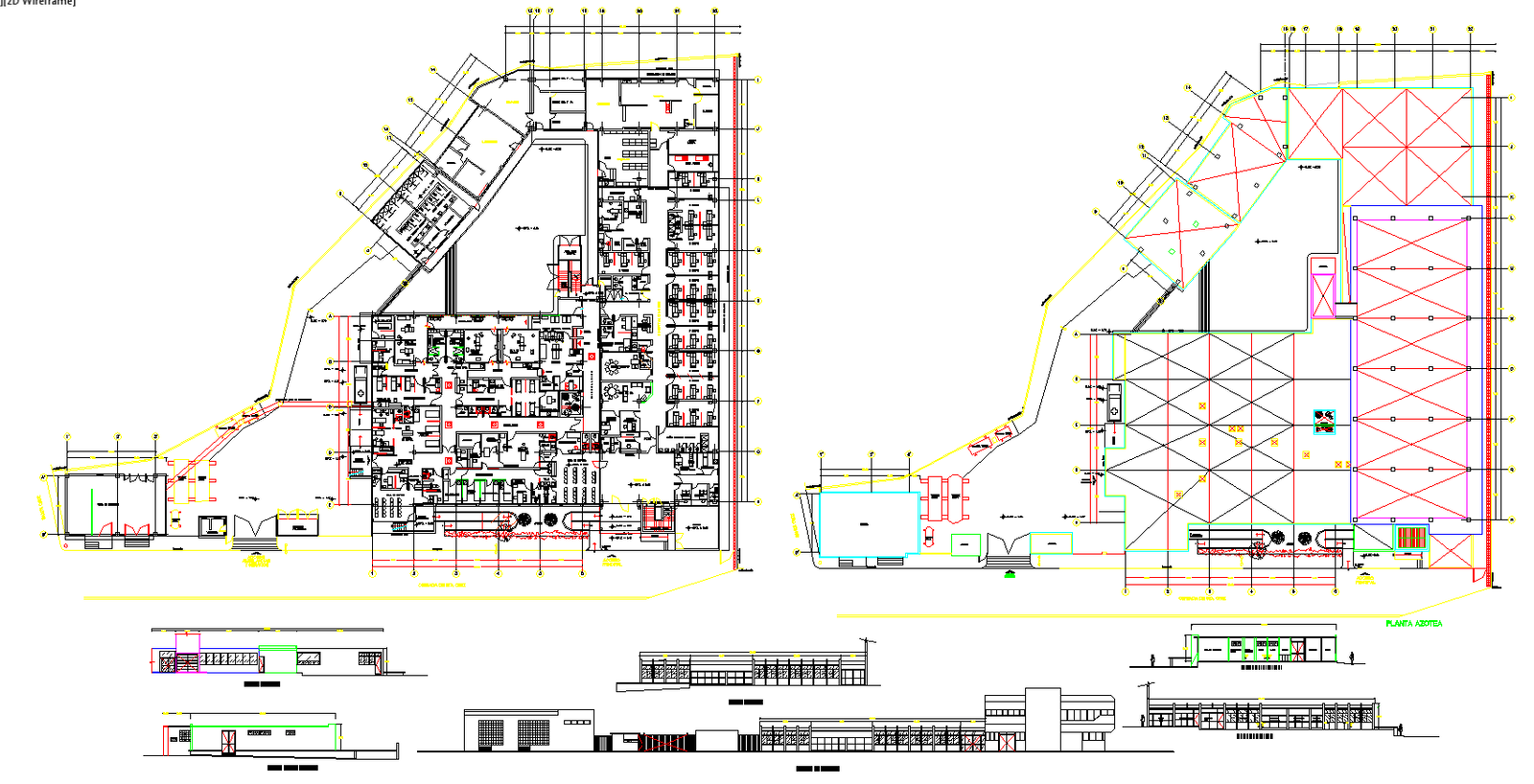

Hospital Materno Infantil 1 100 Scale Architectural DWG Layout is a professionally designed AutoCAD drawing created at a 1:100 scale, presenting a complete architectural plan for a maternal and child healthcare facility. This DWG file includes detailed site layout, emergency access routes, main entrances, circulation planning, and functional zoning. Key hospital departments such as emergency, laboratory, radiology, labor room, tocology, recovery, surgery, ultrasound, and CEYE are clearly organized with accurate dimensions. Sheets A-001 and A-002 ensure precise coordination for architectural, structural, and MEP planning.

The drawing set also features comprehensive building elevations, including front, rear, side, and combined facades, along with sectional views A-A and B-B for vertical design clarity. The site plan highlights boundary limits, access roads, and the north direction for correct orientation.
