Residential House 14m x 8m Architectural Plan Section Elevation Detail

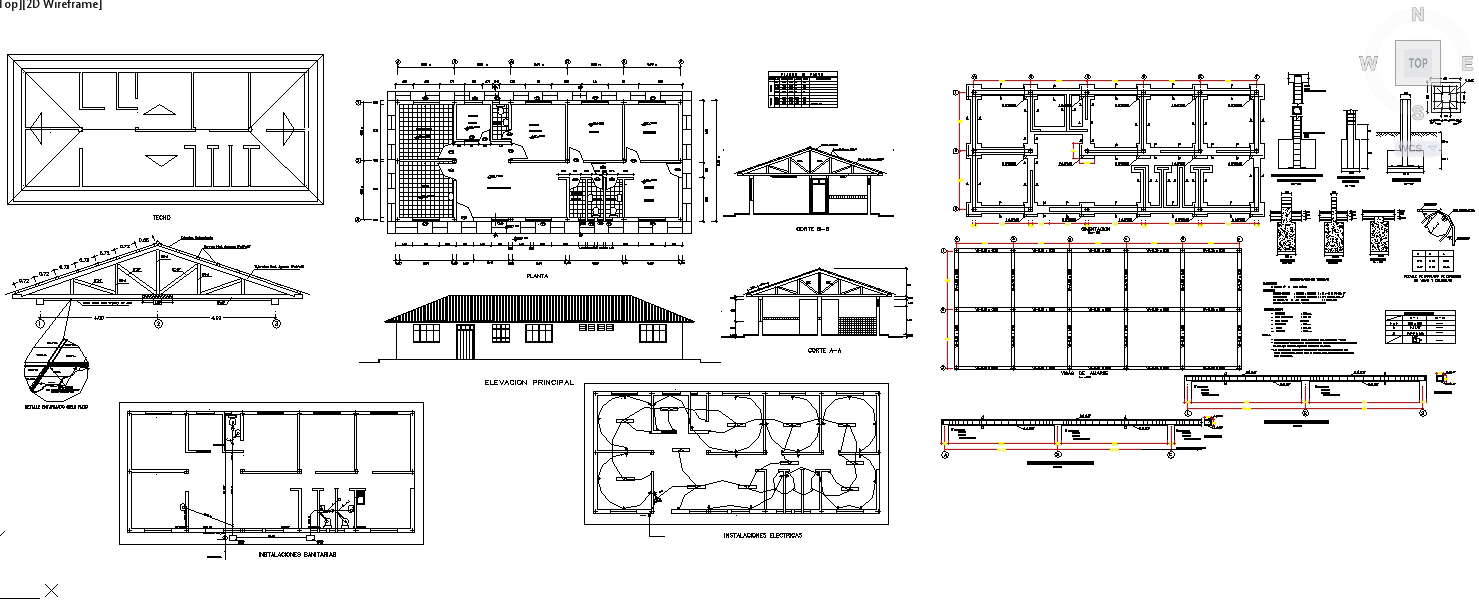

Residential House 14m x 8m Plan Elevation Section Detail is a complete AutoCAD drawing set prepared with accurate construction measurements and technical references. The file includes a fully dimensioned architectural floor plan showing the living room, bedrooms, kitchen, bathroom, circulation space, and internal wall thickness. A detailed roof plan presents truss layout, slope direction, ridge alignment, and structural framing dimensions. The drawing also contains foundation layout with column grid, footing detail, plinth beam alignment, and structural sections for execution clarity. Door window positioning, room sizes, and external offsets are clearly annotated to support residential planning and site implementation.
