Hotel 4 Storey 20m x 15m Elevation Section with Ground Parking

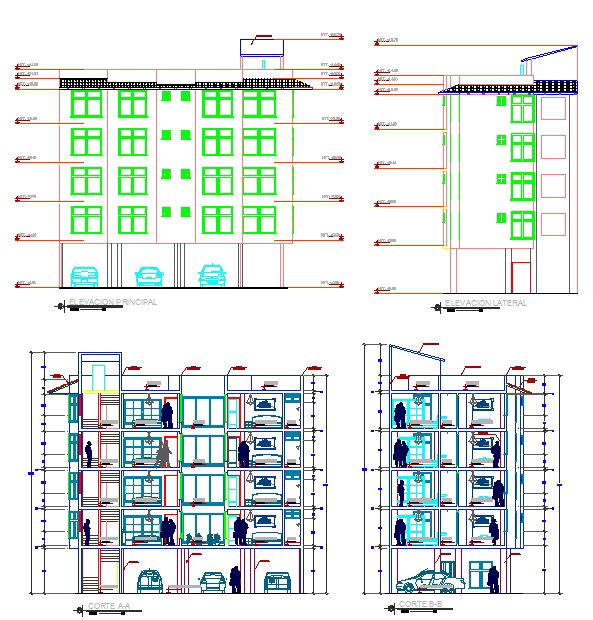

Hotel 4 Storey 20m x 15m Elevation Section with Ground Parking is a complete AutoCAD architectural drawing prepared with precise vertical and horizontal measurements. The front elevation illustrates four upper floors with uniform window alignment, balcony projection, parapet height, and roof slope detailing. The lateral elevation presents side façade treatment, floor-to-floor height levels, and structural alignment. Section A clearly shows the internal room configuration across all floors with slab thickness, beam depth, staircase positioning, and lift core arrangement. Ground floor parking layout is detailed with vehicle clearance height and column spacing for proper circulation.
