Hospital Campus 300m x 220m Architectural Master Plan Layout

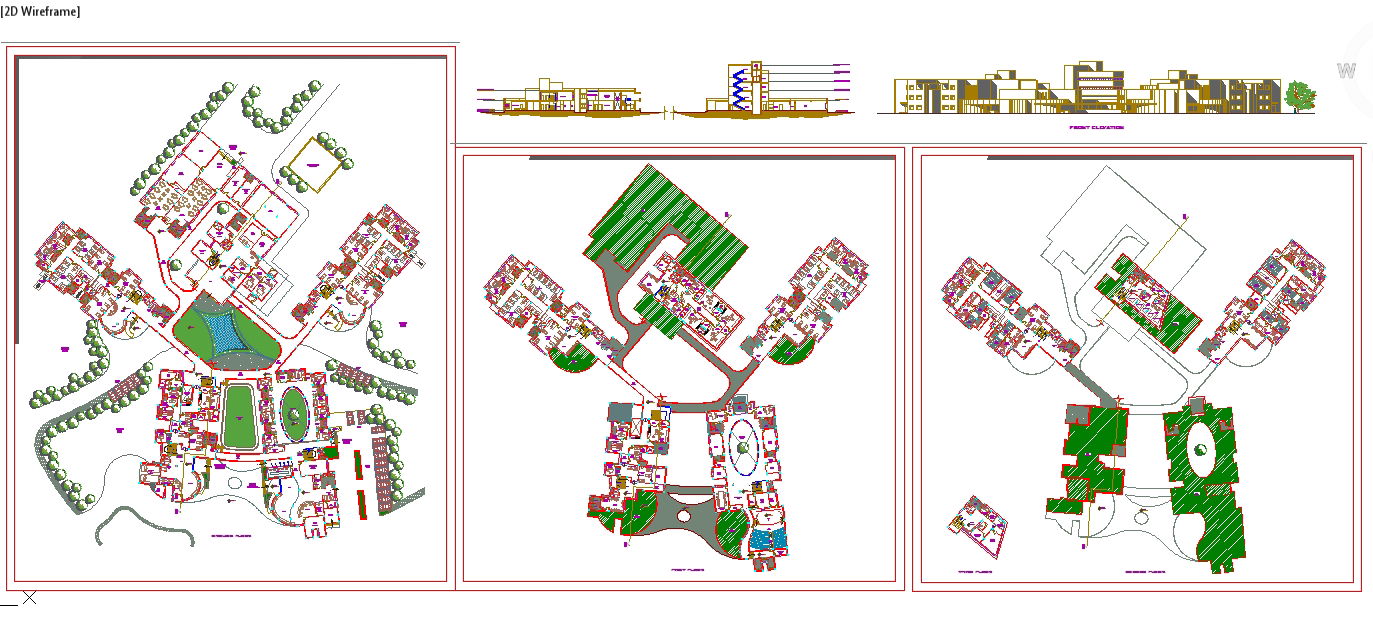

Hospital Campus 300m x 220m Architectural Master Plan Layout is a comprehensive AutoCAD drawing set prepared with precise site measurements and functional zoning coordination. The master site plan presents multiple hospital blocks arranged around landscaped courtyards and internal circulation roads. Departmental layouts, ward distribution, outpatient zones, diagnostic areas, and service blocks are clearly defined with dimensional references. Parking layout, vehicular access routes, pedestrian pathways, and green buffer zones are systematically organized within the boundary grid. Structural alignment and block connectivity are detailed to maintain efficient patient movement and operational flow.
