Clinic Detail planClinic Detail Plan Room Layout With Dimensions

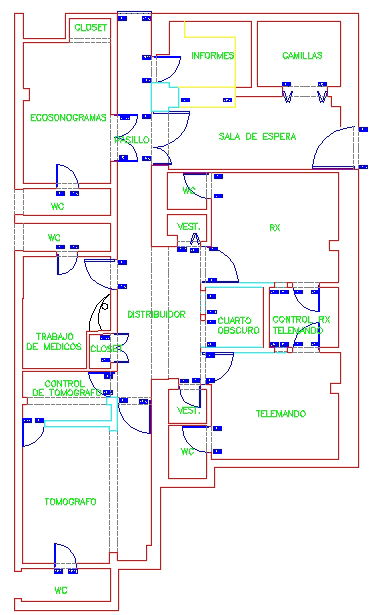

This Clinic Detail Plan Room Layout With Dimensions drawing presents a complete medical facility layout with clearly defined functional zoning and measured room arrangements. The plan includes reception and waiting area, consultation rooms, RX room, control room, dark room, telemando space, tomography room, doctor work area, and dedicated WC blocks. Circulation corridors and distributor areas are accurately dimensioned to maintain smooth patient and staff movement. All walls, door swings, and partition thicknesses are clearly marked with d to d measurements for construction accuracy.
