Hotel Room Design File Plan Elevation Section detailed design

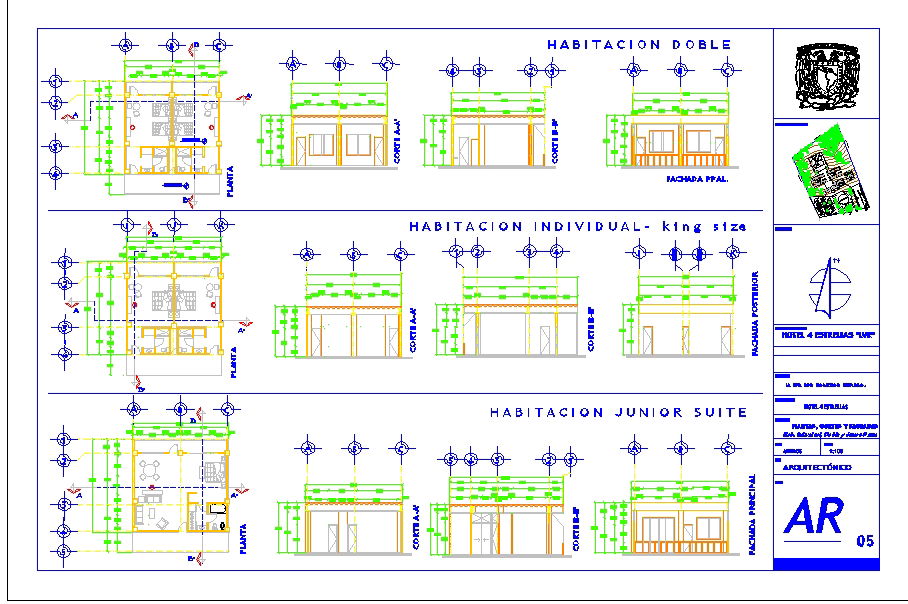

This Hotel Room Design File Plan Elevation Section drawing presents detailed layouts for multiple room categories, including Double Room, Individual King Size Room, and Junior Suite. Each room type includes a complete plan layout with furniture arrangement, bed positioning, wardrobe placement, bathroom layout, and circulation space clearly dimensioned with d to d measurements. Structural grid references, wall thickness, door openings, and window alignment are properly indicated to ensure accurate construction coordination and interior planning.
