Commercial Building Project Drawing Set With Plans 60x40m Layout

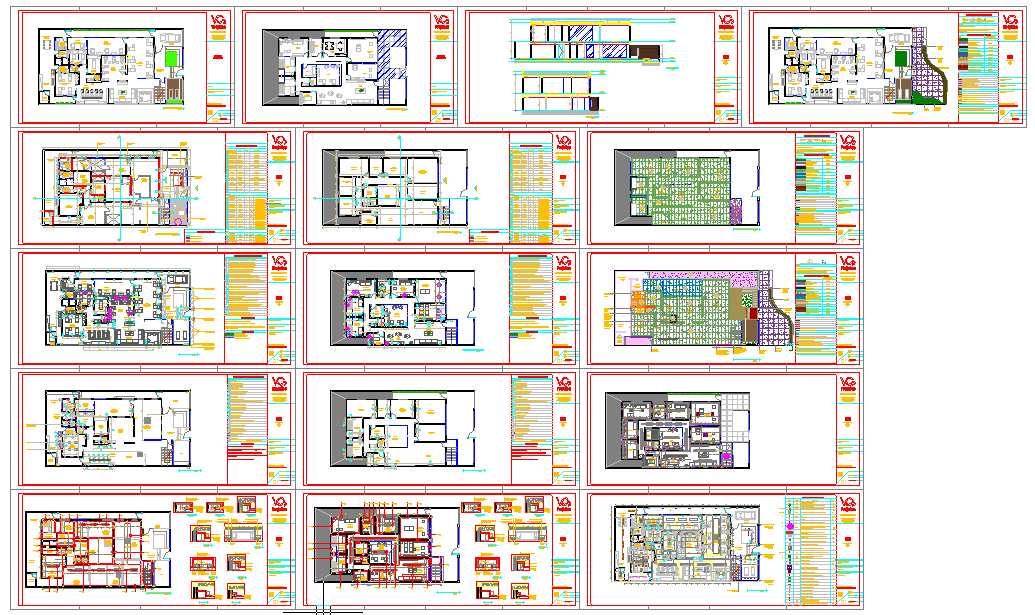

This commercial building project drawing set presents a complete 60x40m layout showing detailed floor plans, sectional views, elevations, and service arrangements. The commercial building project includes ground floor and upper floor layouts with clearly defined office areas, circulation corridors, staircase blocks, lift core, reception zone, service rooms, and utility spaces. Structural grid lines, column placements, beam layout references, and wall thickness dimensions are accurately marked. Each commercial building drawing displays room measurements, door and window positions, and functional zoning to support coordinated architectural and structural planning. The drawing sheets further illustrate sectional cuts, indicating floor-to-floor height, slab thickness, plinth level, and roof structure alignment within the 60x40m building footprint. Electrical and service layout references, furniture positioning, and internal partition details are integrated for spatial clarity.
