Health Centre Plan with 1545.33 m2 Site Layout and Elevation

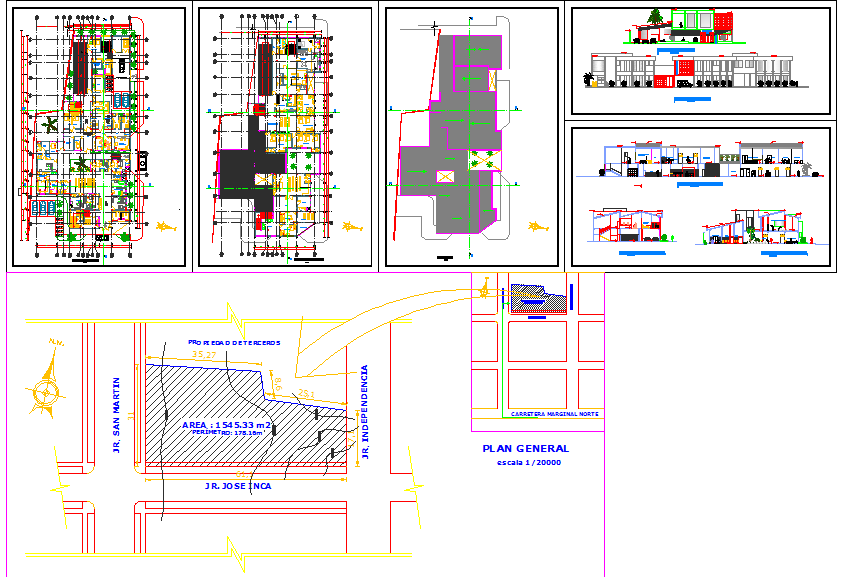

This health centre detail file presents a complete health centre plan developed on a site area of 1545.33 m2 with a perimeter of 175.18 ml clearly marked. The plan is generally drawn at escala 1 2000 showing site orientation between Jr Jose Inca, Jr San Martin, and Jr Independencia road boundaries. The architectural layout includes outpatient consultation rooms, waiting areas, service counters, and circulation corridors arranged within the defined plot. Structural grid lines, wall alignments, and room partitions are precisely illustrated for construction clarity. Parking zones and access pathways are organized along the site edge with landscaped setbacks.
