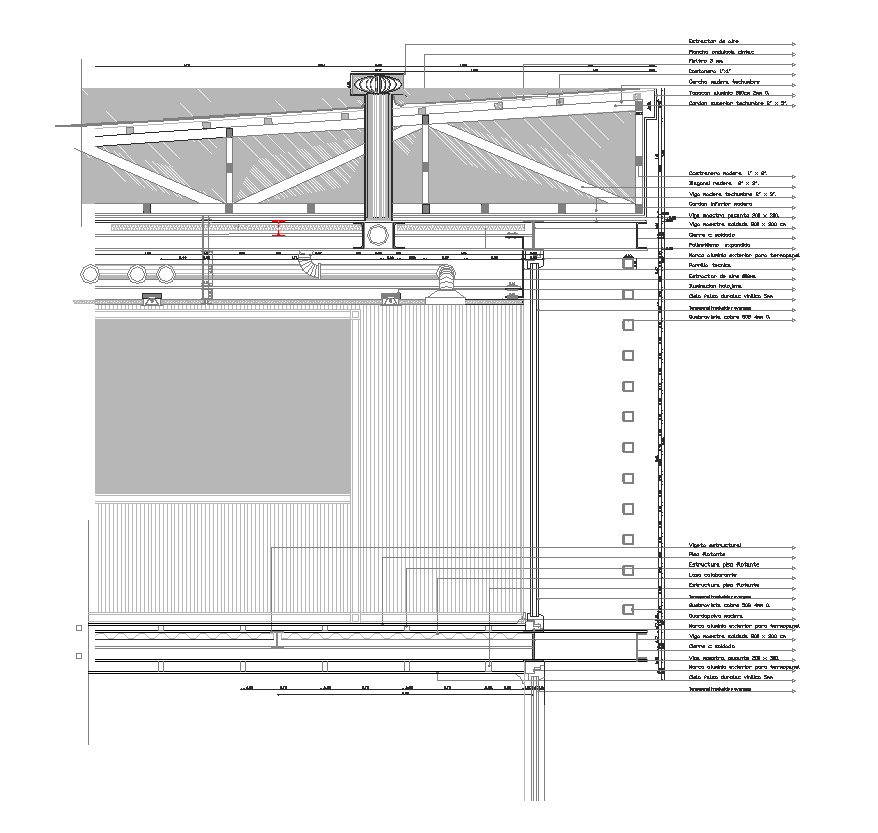

Building detail steel structure detail section 2d view layout file


Description

Building detail steel structure detail section 2d view layout file, roof structure detail, naming detail, steel structure detail, nut bolt required for joints and connection detail, struts detail, steel bracket detail, wall detail, dimension detail, principal rafter detail, I angle section detail, web and flange plate detail, welded connection joints detail, roofing material detail, etc.



Presenting the broken author avatar :D Eiz Luna
New-Zealand
File Type: DWG ID: 60921
