Factory Design Plan DWG with Floor Layout, Sections, and Elevations

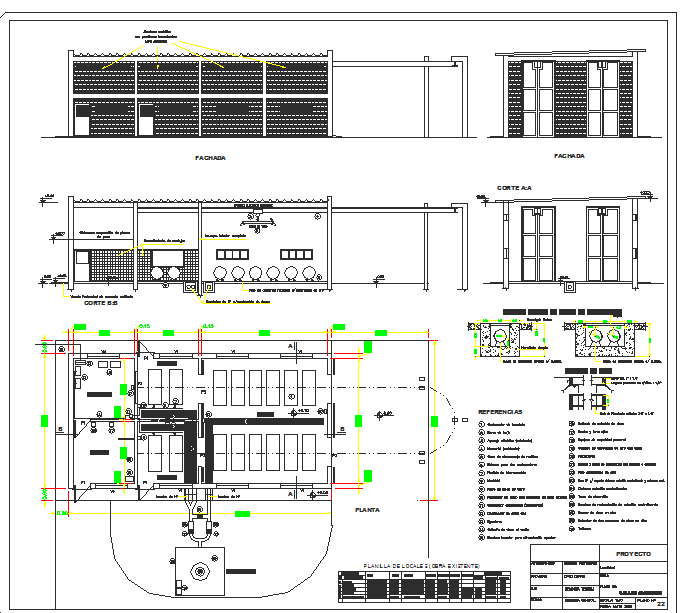

This Factory Detail Plan DWG includes a complete design with floor layouts, sections, and elevations, showcasing key structural and architectural elements of an industrial building. The plan includes clear measurements for walls, doors, windows, and essential sections, making it perfect for architects, civil engineers, and builders involved in industrial construction projects. Detailed elevations and floor plans are provided, ensuring an efficient and functional layout for the factory. The design covers both exterior and interior layouts, highlighting spaces for equipment, storage, and work areas.

The DWG file is compatible with AutoCAD, 3ds Max, Revit, and Google SketchUp, offering full flexibility for design modifications and customizations. This file serves as an invaluable resource for professionals looking to design or renovate industrial factories with optimal space planning and structural integrity. Subscription access grants complete, editable DWG files, enabling full customization to meet the specific requirements of any industrial facility.
