Detail machinery structure 2d view layout autocad file
Tags
#machinery structure
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

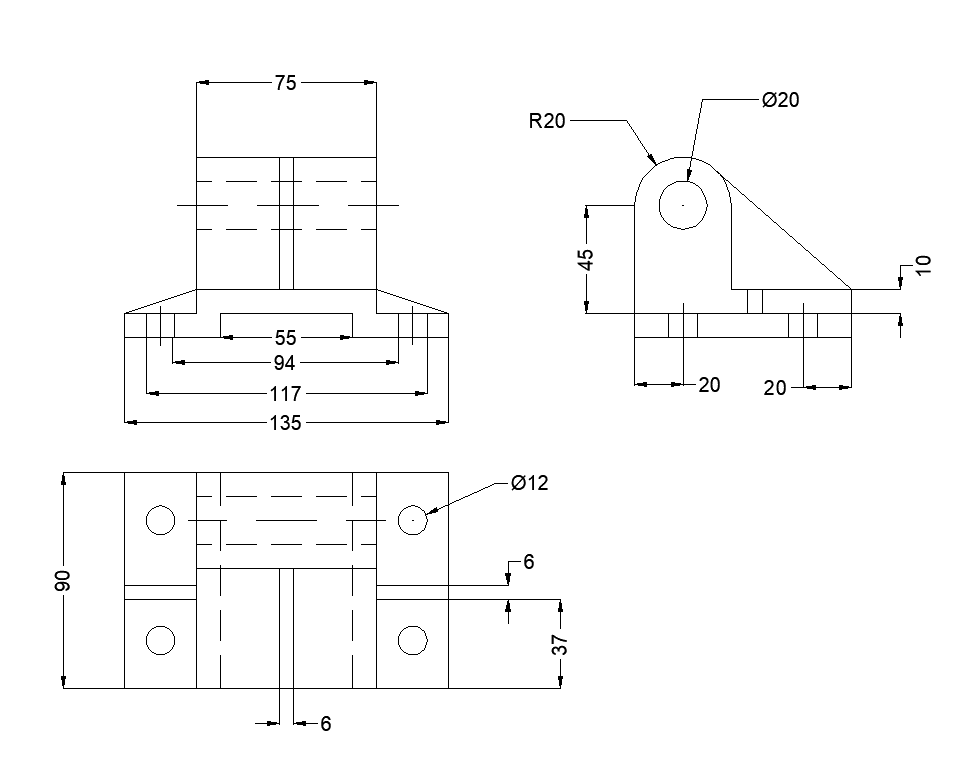

Detail machinery structure 2d view layout autocad file, top elevation detail, hidden line detail, side elevation detail, shaft hole detail, metallic body detail, dimension detail, top and base plate detail, hole diameter detail, not to scale drawing detail, radius detail, filleting is done on sides, spacing for oiling detail, etc.
