Restaurant Building Structure Detail Elevation and Section Layout in

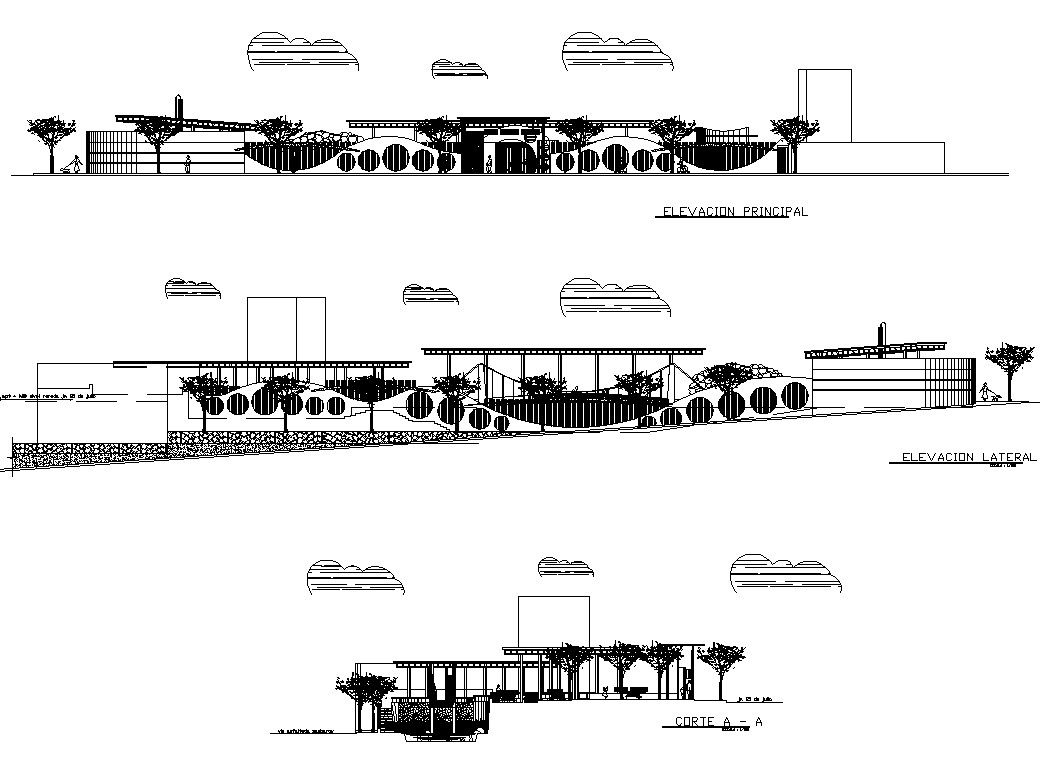

This AutoCAD DWG file provides a comprehensive restaurant building structure detail, showcasing the elevation and section layout with precise technical details. The drawing includes key elements such as wall details, RCC structure, furniture arrangement, entrance gate layout, and ground level details. Detailed front and side elevation views highlight the architectural design, while section A-A provides a cross-sectional understanding of the building’s internal structure.

The plan also incorporates landscaping elements, such as tree placements, ensuring the restaurant blends seamlessly into its surroundings. This file is ideal for architects, structural engineers, interior designers, and construction managers working on restaurant projects. The DWG file is fully editable and compatible with AutoCAD, Revit, 3ds Max, and Google SketchUp, making it suitable for various design and construction workflows. Whether you're in the design phase or managing construction, this drawing serves as a valuable reference for ensuring the building's structural integrity and aesthetic quality.
