Ground floor and framing plan details of one family house cad drawing details dwg file

Description:

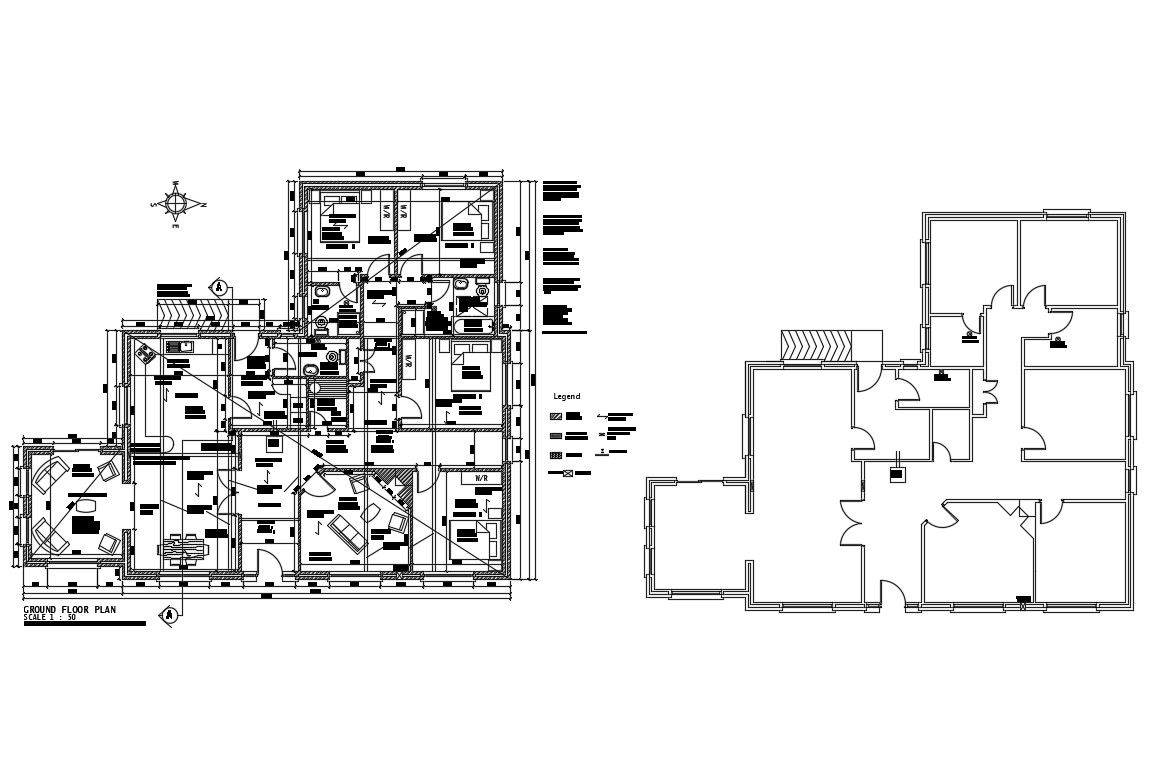

Ground floor and framing plan details of one family house cad drawing details that includes a detailed view of wood posts, joints, decking, grider pre-engineering, steel pipe column, play joints, existing floor joints, knee wall, steel pipe column, beam schedule details, dimensions details, measures with main entry house door, drawing room, living room, family hall, kitchen, dining area, indoor staircases, laundry area, balcony, bedroom, master bedroom, toilets and bathroom, indoor doors, furniture details and much more of house project



Category : Cad Architecture
Sub category : House
File Type : Autocad
File ID : 61419
Type : Gold
Size : 668.44 KB
