Doors and windows elevation and installation with car pantry details dwg file


Description

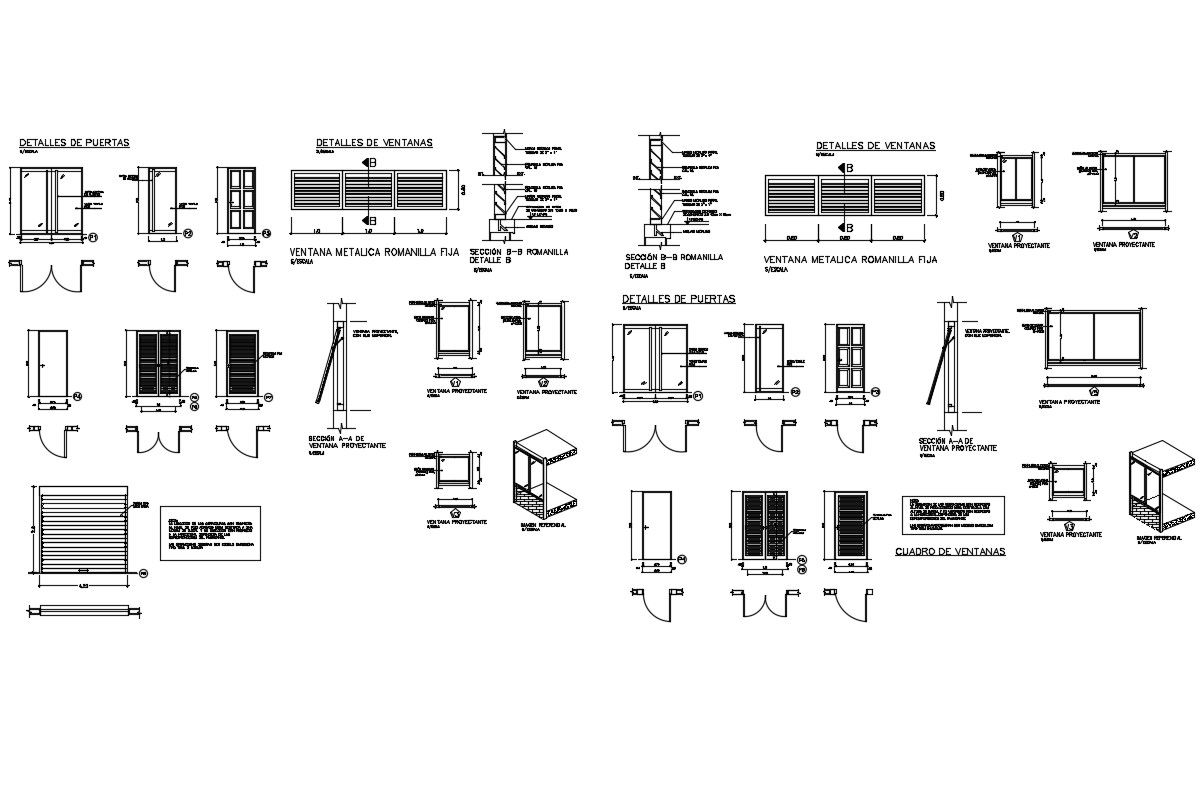

Doors and windows elevation and installation with car pantry details that includes a detailed view of welded plate for grappling the clamp, door elevation details, door section details, double swing handle (with placement accessories), reinforcement rib, expanded metal, ceramic block, ceramic, block, lintel 2 irons, wood cap, frame and much more of door installation details




File Type: DWG File ID: 61479

Uploaded by:


Vaishali
India
