Foundation plan and plant details of corporate building dwg file

Description:

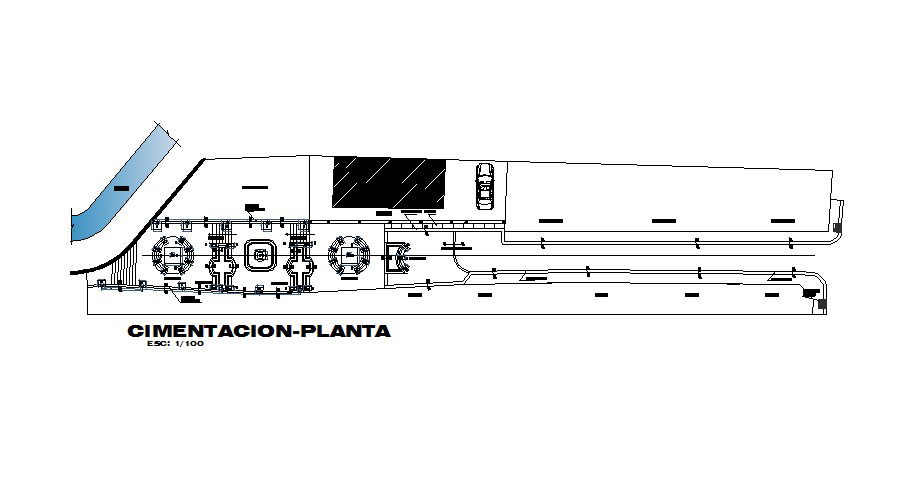

Foundation plan and plant details of corporate building that includes a detailed view of the foundation, side typical shoe, typical central shoe, columns, foundations, shoes, cistern tank, walls of concr. arm., beams flat, peralted beams, foundation beams, (cement: sand: crushed stone), typical detail of reinforcement and ended of walls of masonry, detail of cistern, cure the concrete by wet way minimum 7 days, - avoid splices and overlaps in areas of maximum effort and much more of structure details.

Category : Detail
Sub category : Structure detail
File Type : Autocad
File ID : 61907
Type : Gold
Size : 2618.31 KB
