Staircase section and construction details with slab cad construction details dwg file


Description

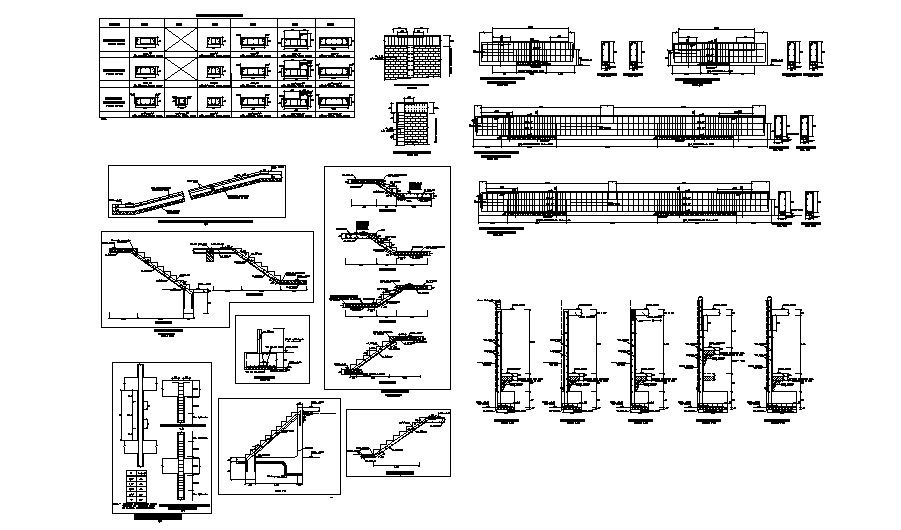

Staircase section and construction details with slab cad construction details that includes a detailed view of house front sectional view with main stairways, stairways sectional view of drawing room to floor, terrace stairways, doors and windows view, vest scenario, ceramic floor, horizontal section, tapizon novoflor corrugated beige, ceramic floor clime color Blanco, foot print ceramic, novice glue, steps details, supportive wooden railing installation, base floor concrete plan, wall construction dimensions view, supportive pillar view and much more of stairways details.




File Type: DWG File ID: 62111

Uploaded by:


Vaishali
India
