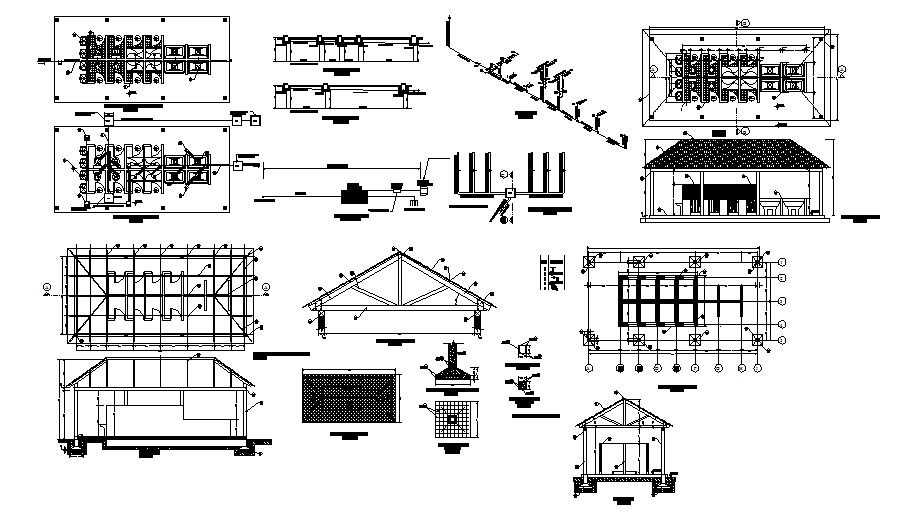

Public hygiene service elevation, section, plan, installation and auto-cad details dwg file


Description

Public hygiene service elevation, section, plan, installation and auto-cad details that includes a detailed view of toilet sectional details, passage, sanitary equipment installation details, doors and ventilation details, plumbing details, interior details, dimensions details, wall section details with Durlock type ceiling lamp Light, Hanging electric the rmotant RHEEM brand cap lts., Porcelain girl soap dish sinkta, Faucet FV monocomando, Electric thermostat hung, Hot water pass-through taps, Cold water pass-through taps, Bidet type FERRUM model Fenix Pilar, Open patio sink, white porcelain holder FERRUM type, White porcelain simple hanger type FERRUM, Porcelain girl soap holder type, faucet for lavatory type FV model and much more of bathroom details.




File Type: DWG File ID: 62387
