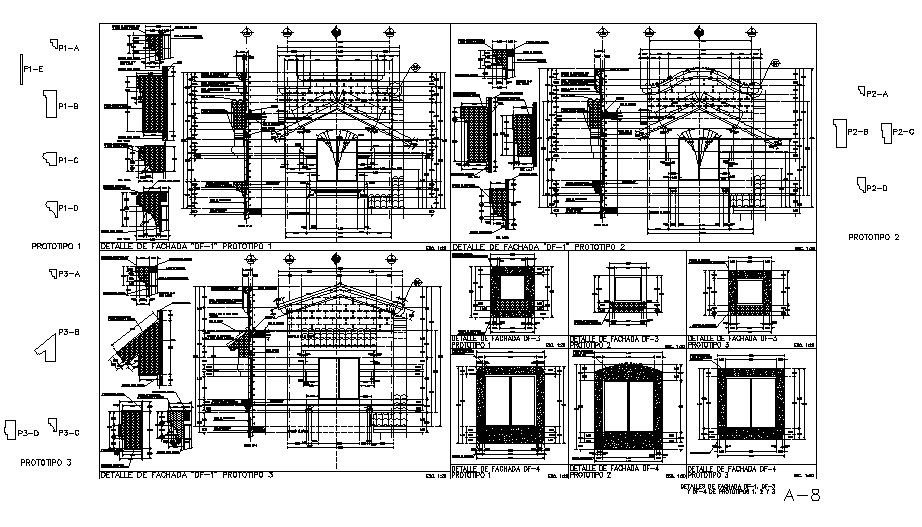

Residential house elevation and constructive sectional details dwg file


Description

Residential house elevation and constructive sectional details that includes a detailed view of flooring view, doors and windows view, staircase view, balcony view, wall design, dimensions, roof or terrace view, wall construction, memory of materials, footings details, column view, beam construction, covers closure type, soil burried wall closure , exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, plaster plastering, Concrete wall and much more of house details.



Vaishali
India
File Type: DWG ID: 62405
