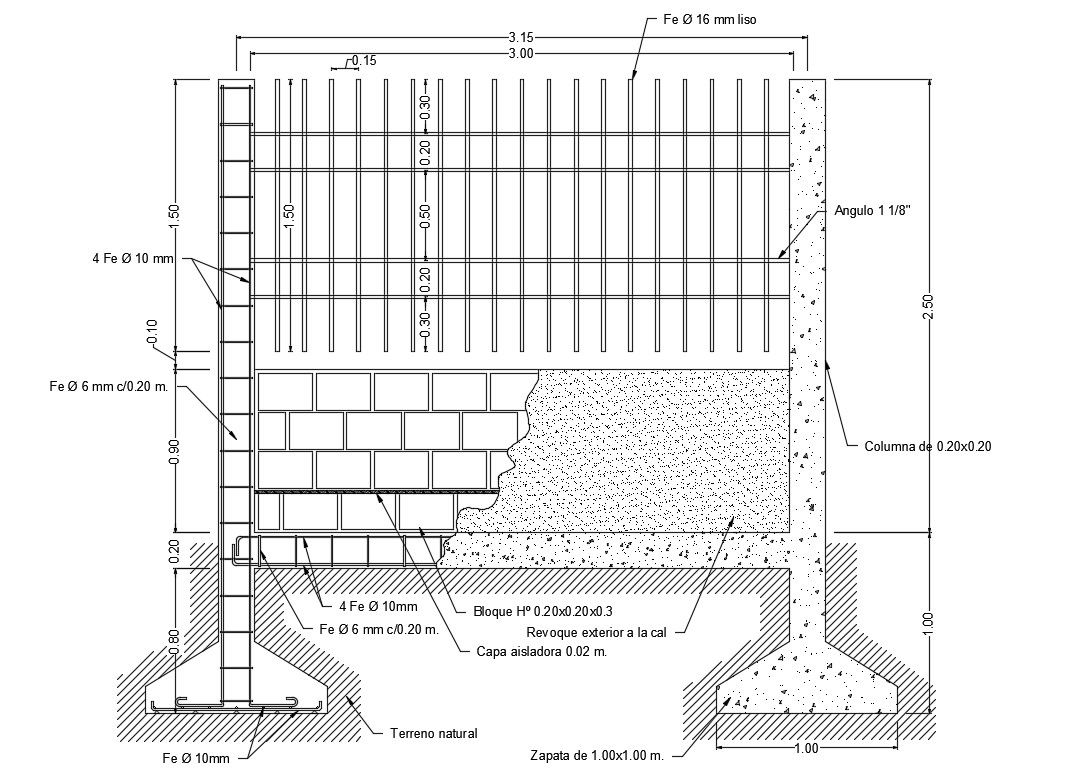

Fence section and construction details with footing dwg file


Description

Fence section and construction details with footing that includes a detailed view of capacity of load of the ground at level of foundation of shoes, foundation floors, concrete-cement mixture, false floors, cement-concrete mixture (on compacted soil), Surpluses, cement-concrete mix medium stone, concrete structural, elements of confinement of masonry walls of hollow blocks, Minimum lengths and much more of fence details.




File Type: DWG File ID: 62535

Uploaded by:


Vaishali
India
