1 BHK Apartment AutoCAD 3D Model with Living Dining Kitchen Balcony

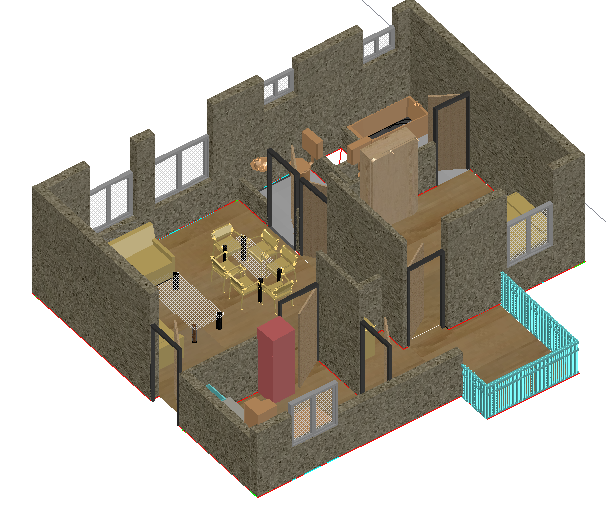

This 1 BHK apartment AutoCAD 3D model provides a complete design including living and dining area, bedroom, kitchen, balcony, and toilets. The entrance opens into the drawing and dining area, which is designed as an open layout without partitions. The bedroom is directly connected to the balcony, providing natural ventilation and light. The plan also includes a shaft system for toilets, ensuring proper plumbing and drainage integration. Every space is measured accurately for construction, furniture placement, and circulation efficiency, making it ideal for residential planning.

The drawing includes sectional views, elevations, and furniture arrangements to aid architects, interior designers, and civil engineers in planning and implementing functional layouts. Professionals using AutoCAD, Revit, 3D Max, or SketchUp can utilize this DWG file to streamline design coordination, ensure accuracy, and optimize space usage. Subscription to this file provides precise guidance for creating practical and aesthetic residential 1 BHK layouts with modern design elements and construction-ready details.
