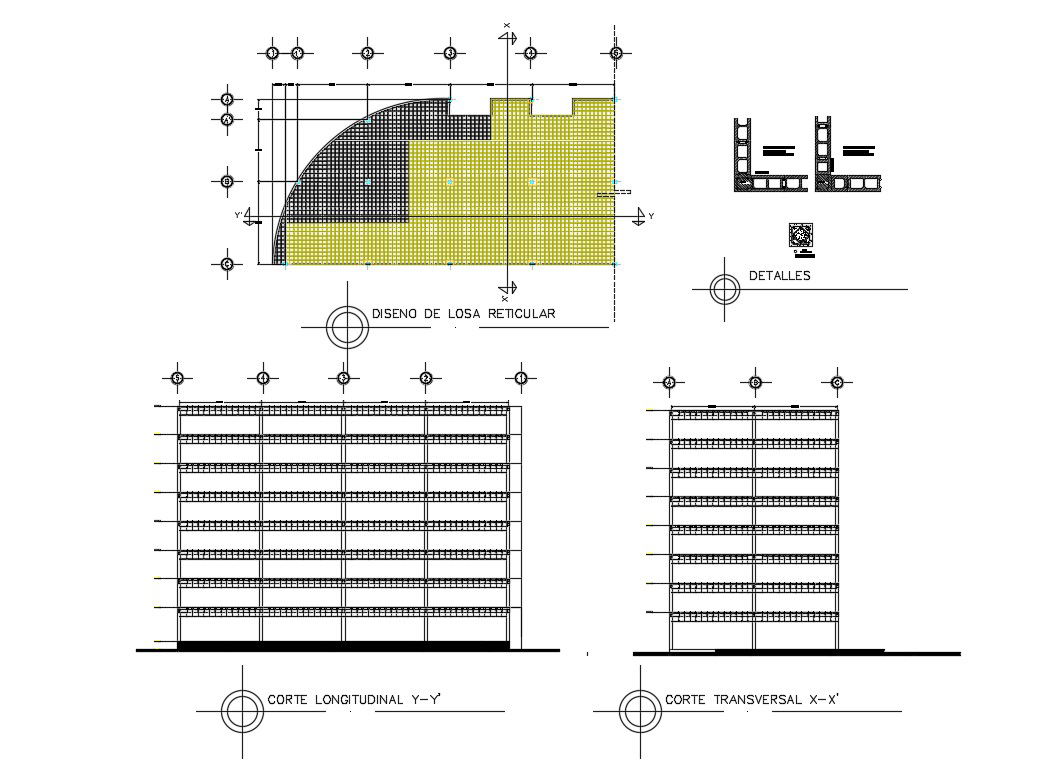

Longitudinal and transverse section and structure details of multi-level building dwg file

Description:

Longitudinal and transverse section and structure details of multi-level building that includes a detailed view of flooring view, wall construction, memory of materials, footings details, column view, beam construction, covers closure type, soil burried wall closure , exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, plaster plastering, Concrete wall and much more of building details.



Category : Cad Architecture
Sub category : Corporate Building
File Type : Autocad
File ID : 62677
Type : Gold
Size : 365.4 KB
Publisher
Vaishali
