Stairways section and construction cad drawing details dwg file


Description

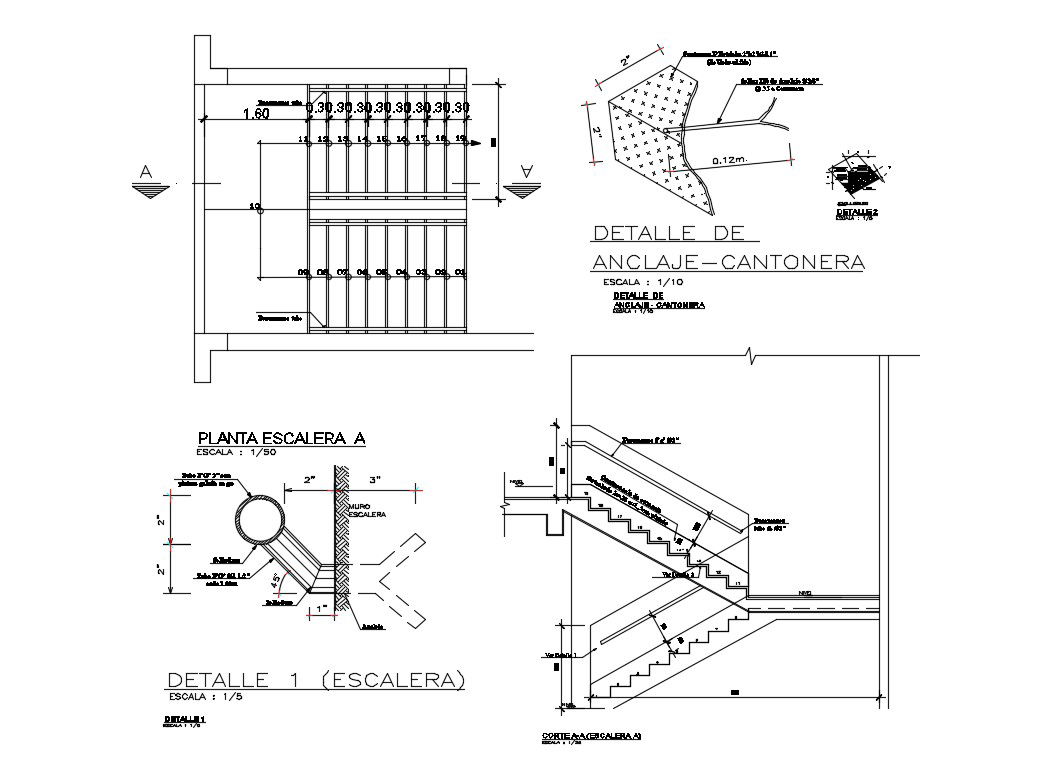

Stairways section and construction cad drawing details that includes a detailed view of staircase vest scenario, ceramic floor, horizontal section, tapizon novoflor corrugated beige, ceramic floor celima color blanco, foot print ceramic, novice glue, steps details, supportive wooden railing installation, base floor concrete plan, wall construction and much more of stairways details.



Vaishali
India
File Type: DWG ID: 62702
