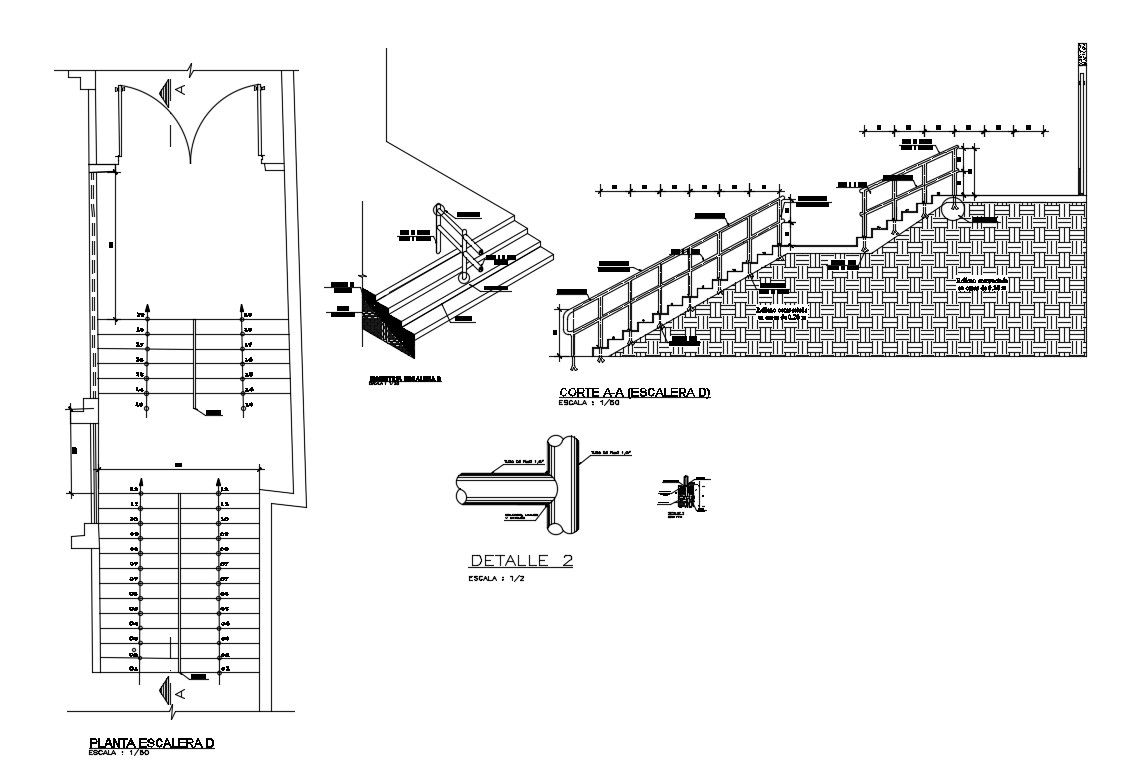

House stairs section and constructive structure details dwg file


Description

House stairs section and constructive structure details that includes a detailed view of staircase vest scenario, ceramic floor, horizontal section, tapizon novoflor corrugated beige, ceramic floor celima color blanco, foot print ceramic, novice glue, steps details, supportive wooden railing installation, base floor concrete plan, wall construction and much more of stairways details.




File Type: DWG File ID: 62715

Uploaded by:


Vaishali
India
