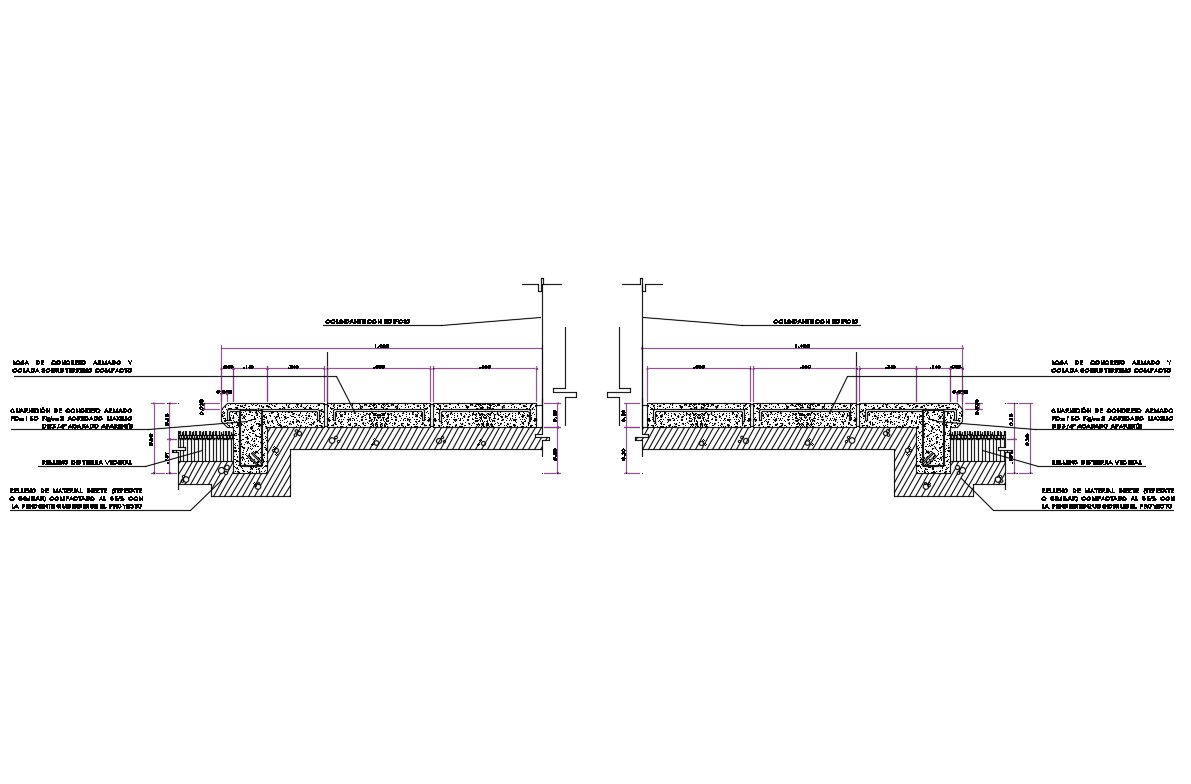

Slab of reinforced concrete and cast on compact ground dwg file


Description

Slab of reinforced concrete and cast on compact ground that includes a detailed view of Reinforced concrete parapet, Stuffed with tezontle, average thickness, Stuck with cement-sand mortar prop, Waterproofing based on prefabricated membrane, Wall concrete hollow block smooth finish, based on granitic acrylic resins, Hollow block wall heavy type of cm, common finish, joined with sand cement mortar with horizontal reinforcement and drowned castles and much more of construction details.




File Type: DWG File ID: 62811

Uploaded by:


Vaishali
India
